L315.1325.01 TN35

Material number L315132501TN35

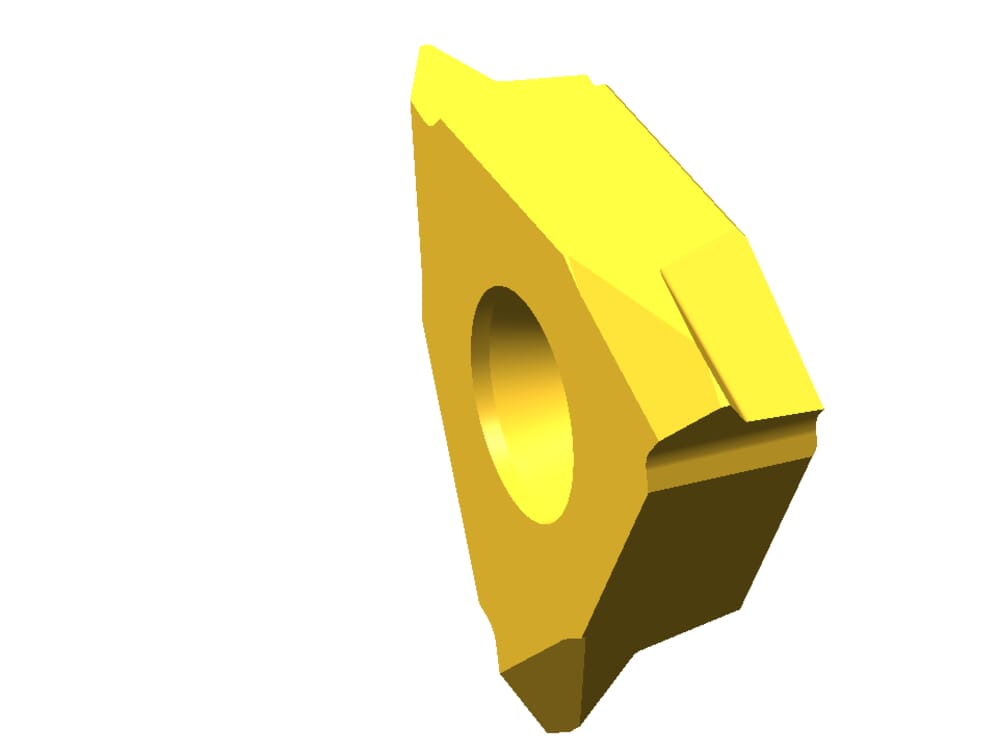

HORN Inserts L315.1325.01 TN35 for Gewinden

Pitch (P)

0.098 ˝

2.5 mm

tool-application

static

Smallest bore diameter (Dmin)

1.693 ˝

43 mm

Cutting insert height, Cutting insert thickness (s)

0.215 ˝

5.45 mm

Setting length (E)

0.167 ˝

4.25 mm

Width at the base of the thread (b)

0.012 ˝

0.31 mm

Katalog_SSC

31505L

Profile, thread depth (tmax)

0.053 ˝

1.35 mm
