L220.00C4.K1.IK
Material number L22000C4K1IK

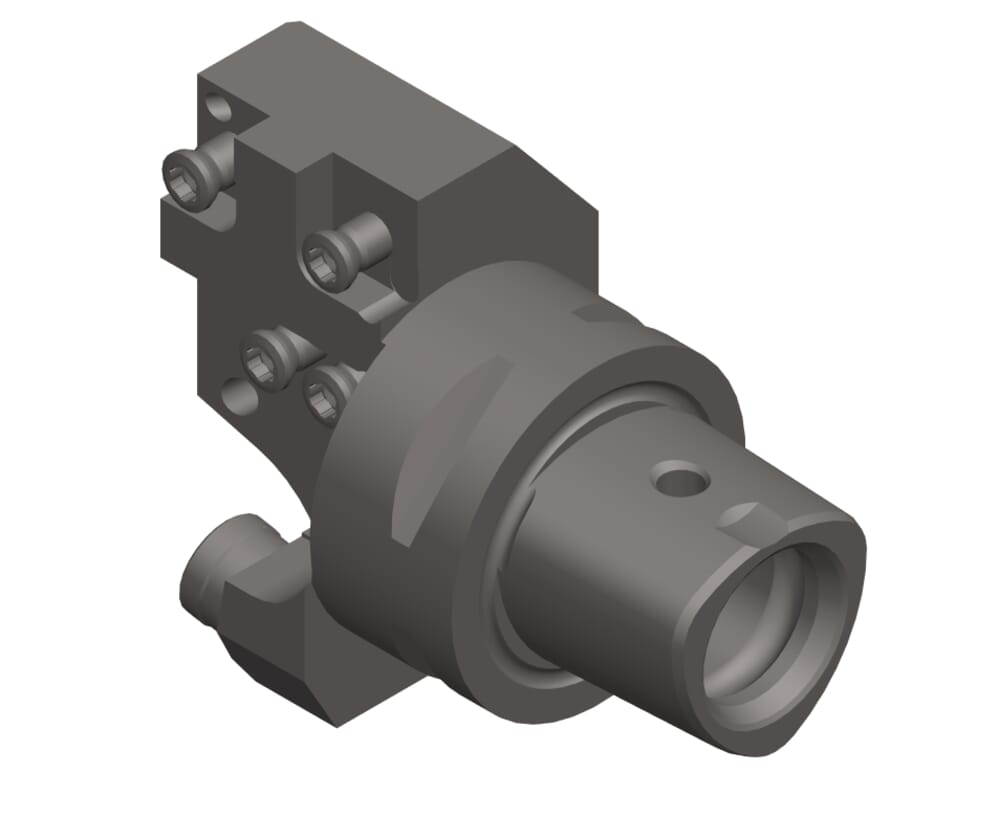

HORN Toolholder L220.00C4.K1.IK for Turning
tool-application
static
machining-direction-sap
left
Adjustment dimension (formula) (f)
f1+f3
Katalog_CCTWS
220002
Distance from center (h1)
0.492 ˝
12.5 mm
Length from bore (l2)
1.969 ˝
50 mm
Adjustment dimension (f1)
0.181 ˝
4.6 mm
Bore diameter rotate (d1)
1.575 ˝
40 mm
System cassette from the collar (l1)
1.575 ˝
40 mm
| Downloads | |
|---|---|
| L22000C4K1.DXF | Download |
| L22000C4K1IK_20210630_095652462.STP | Download |
| Download all files | |
