L114.0150.00 MG12

Recommended:

Material number L114015000MG12

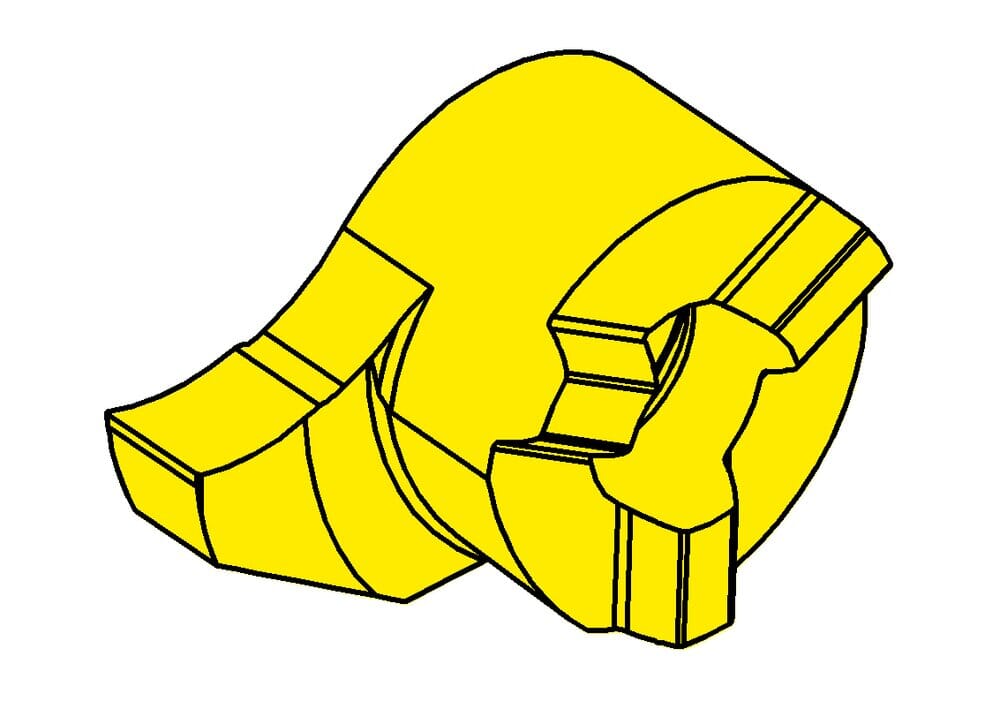

HORN Inserts L114.0150.00 MG12 for Turning

Setting range radial (f)

0.354 ˝

9 mm

us-cutting

Yes

tool-application

static

machining-direction-sap

left

Smallest bore diameter (Dmin)

0.551 ˝

14 mm

Cutting insert height, Cutting insert thickness (s)

0.209 ˝

5.3 mm

Tooth diameter, head diameter (d)

0.354 ˝

9 mm

Head size (a)

0.531 ˝

13.5 mm

Width of groove (mm) (w)

0.059 ˝

1.5 mm

Katalog_SSC

114090L

Maximum depth of groove (tmax)

0.157 ˝

4 mm
