L111.0810.45 MG12

Recommended:

Material number L111081045MG12

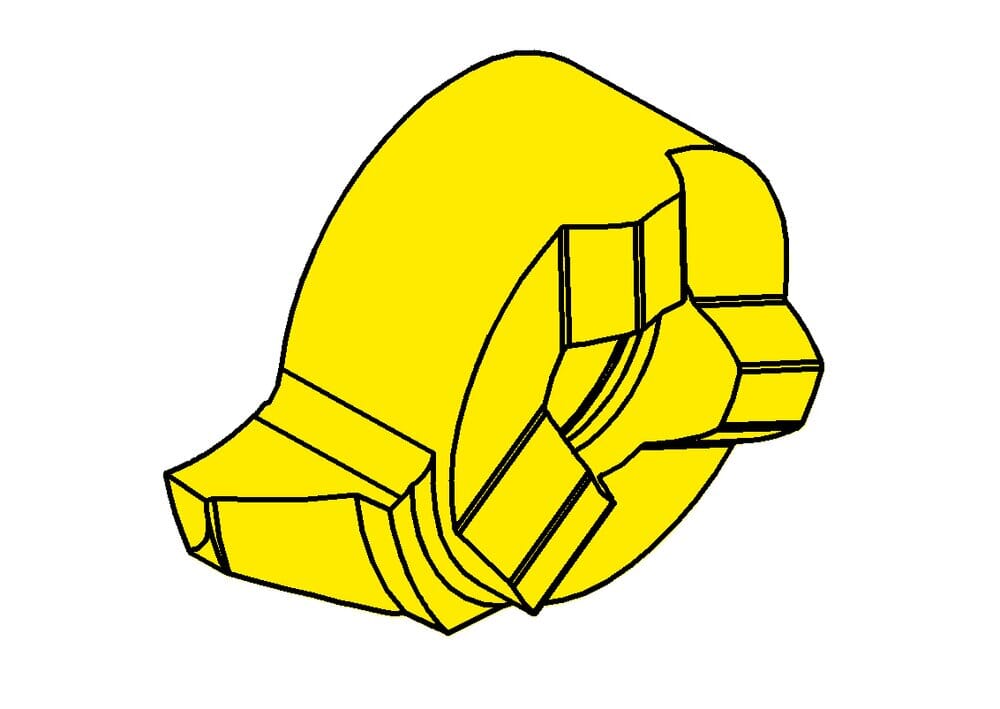

HORN Inserts L111.0810.45 MG12 for Turning

smallest-bore-diameter-met

0.433 ˝

11 mm

us-cutting

Yes

tool-application

static

machining-direction-sap

left

Cutting insert height, Cutting insert thickness (s)

0.156 ˝

3.95 mm

Tooth diameter, head diameter (d)

0.315 ˝

8 mm

Width of groove (mm) (w)

0.039 ˝

1 mm

top-radius-met

0.264 ˝

6.7 mm

Katalog_SSC

111080L

Groove depth without groove outer edge chamfer (t1max)

0.008 ˝

0.2 mm

Maximum depth of groove (tmax)

0.059 ˝

1.5 mm

Head size (a)

0.421 ˝

10.7 mm
