L108.0815.01 MG12

Recommended:

Material number L108081501MG12

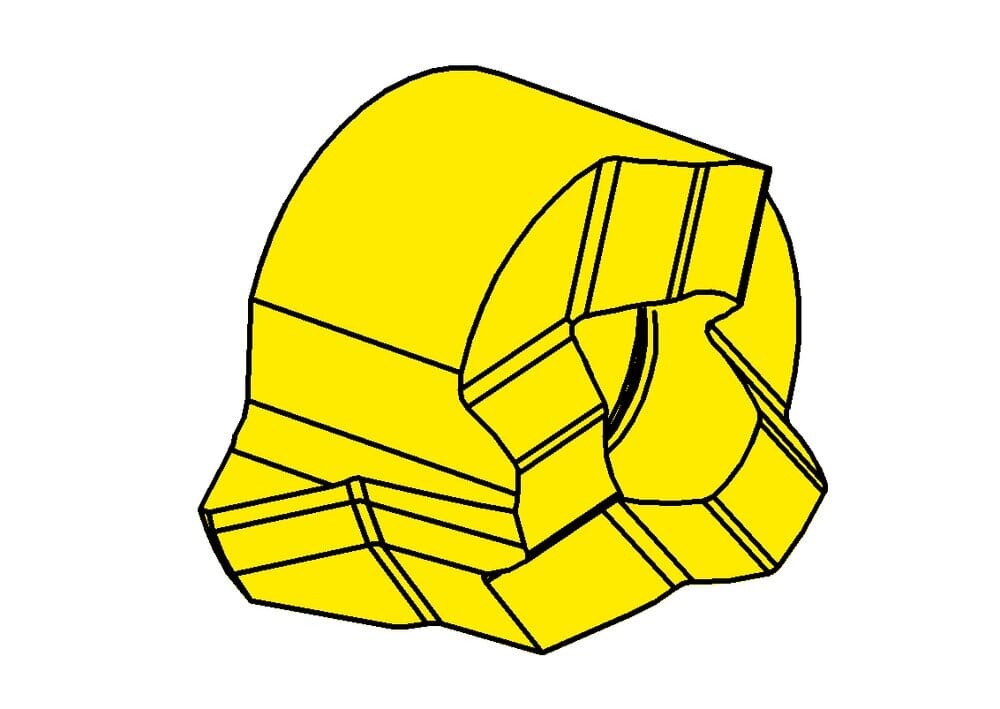

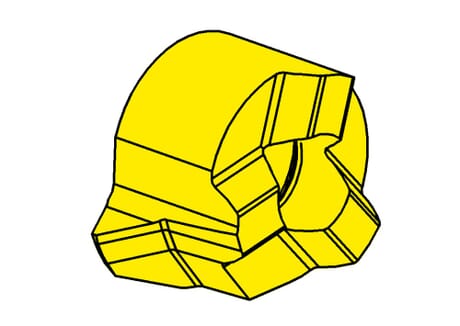

HORN Inserts L108.0815.01 MG12 for Gewinden

Tooth diameter, head diameter (d)

0.236 ˝

6 mm

us-cutting

Yes

tool-application

rotating

machining-direction-sap

left

Maximum pitch (Pmax)

0.069 ˝

1.75 mm

Pitch (P)

0.059 ˝

1.5 mm

Smallest bore diameter (Dmin)

0.315 ˝

8 mm

Cutting insert height, Cutting insert thickness (s)

0.142 ˝

3.6 mm

Setting length (E)

0.102 ˝

2.6 mm

Cutting diameter (Ds)

0.378 ˝

9.6 mm

Cutting insert width (a)

0.307 ˝

7.8 mm

Setting range radial (f)

0.189 ˝

4.8 mm

Katalog_SSC

108060L
