L108.0150.02 MG12

Recommended:

Material number L108015002MG12

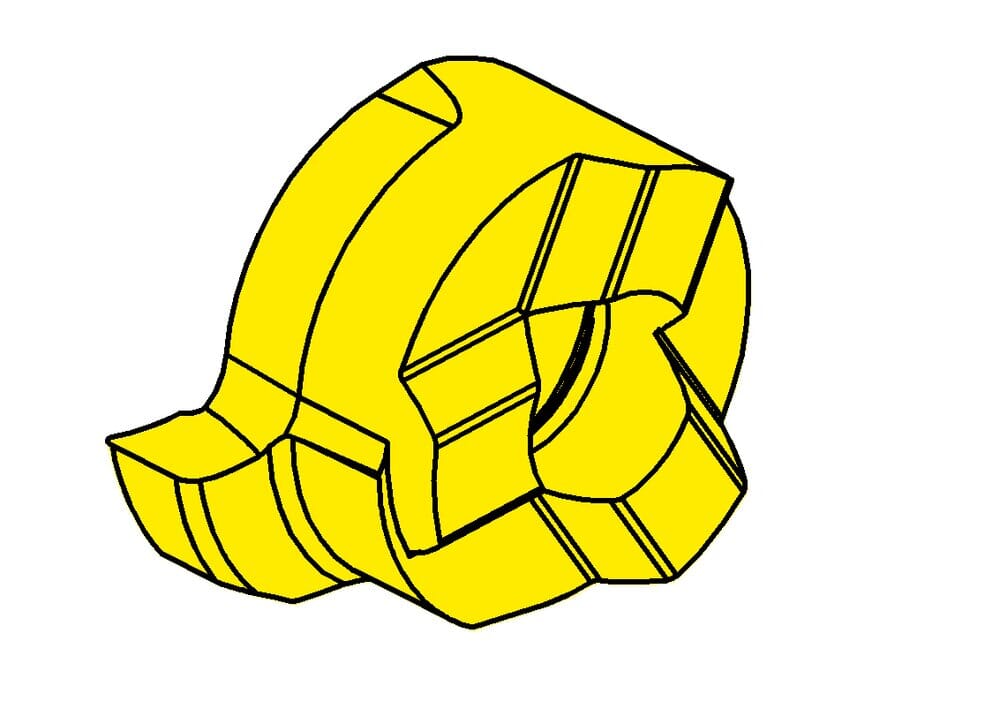

HORN insert L108.0150.02 MG12 for Turning

Note: These inserts are optimized for finishing passes.

Width of groove (mm) (w)

0.059 ˝

1.5 mm

cutting

tool-application

static

machining-direction-sap

left

Smallest bore diameter (Dmin)

0.315 ˝

8 mm

Cutting insert height, Cutting insert thickness (s)

0.126 ˝

3.2 mm

Tooth diameter, head diameter (d)

0.236 ˝

6 mm

Setting range radial (f)

0.189 ˝

4.8 mm

Head size (a)

0.307 ˝

7.8 mm

Corner radius (r)

0.008 ˝

0.2 mm

Katalog_SSC

108060L

Maximum depth of groove (tmax)

0.039 ˝

1 mm
