HSKT63.L220.130.K2.IK
Material number HSKT63L220130K2IK

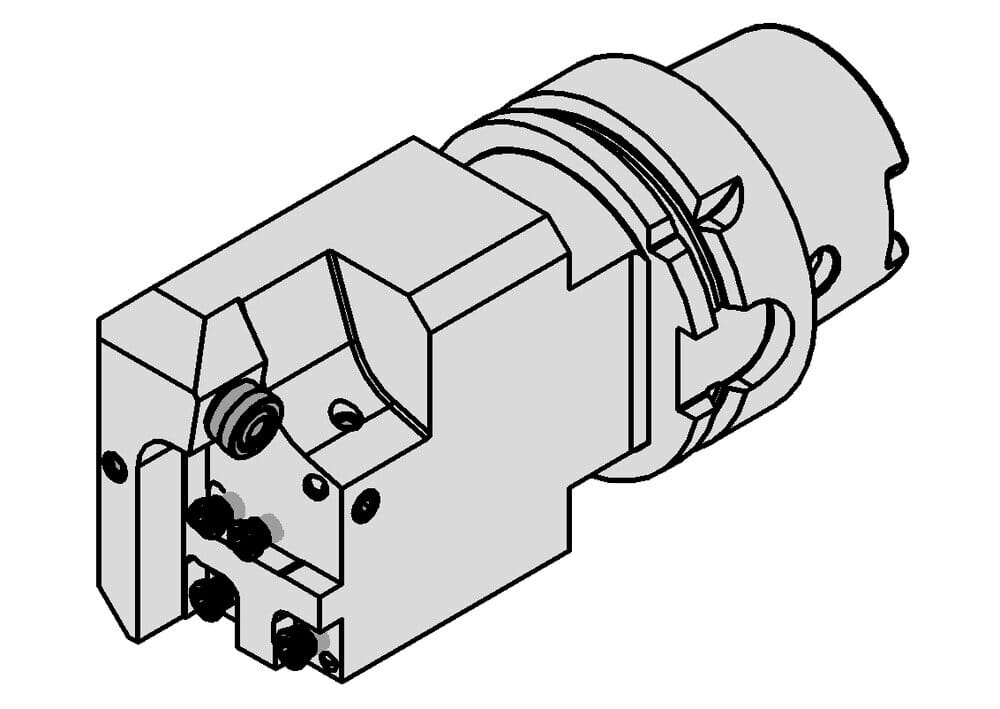

HORN base support HSKT63.L220.130.K2.IK for Turning
tool-application
static
Adjustment dimension (formula) (f)
f1+lK
Katalog_CCTWS
220001
Distance from center (h1)
0.492 ˝
12.5 mm
dim-locating-face-to-cassette-met
3.976 ˝
101 mm
Length of base from bore (l2)
4.37 ˝
111 mm
Cassette system from the middle (f1)
0.315 ˝
8 mm
Bore diameter rotate (d)
2.48 ˝
63 mm
| Downloads | |
|---|---|
| HSKT63_L220_130_K2_IK-ISO.XML | Download |
| HSKT63_L220_130_K2_IK-DIN.XML | Download |
| HSKT63_L220_130_K2_IK-DXF.DXF | Download |
| HSKT63_L220_130_K2_IK-STP.STP | Download |
| Download all files | |
