HSKT63.L220.110.K2.IK

Material number HSKT63L220110K2IK

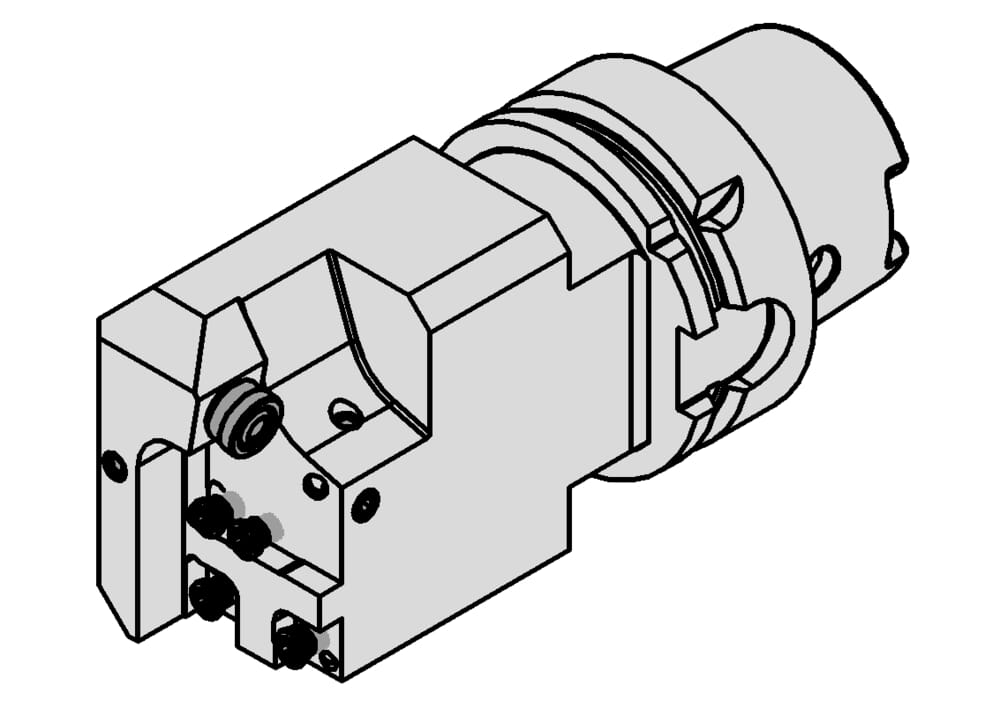

HORN base support type 220 HSKT63.L220.110.K2.IK for Turning

tool-application

static

Adjustment dimension (formula) (f)

f1+lK

Katalog_CCTWS

220001

Distance from center (h1)

0.492 ˝

12.5 mm

dim-locating-face-to-cassette-met

3.685 ˝

93.6 mm

Length of base from bore (l2)

4.283 ˝

108.8 mm

Cassette system from the middle (f1)

0.315 ˝

8 mm

Bore diameter rotate (d)

2.48 ˝

63 mm

Inserts

312002040K10
