HSK-L220.0063.K1.IK
Material number HSK-L2200063K1IK

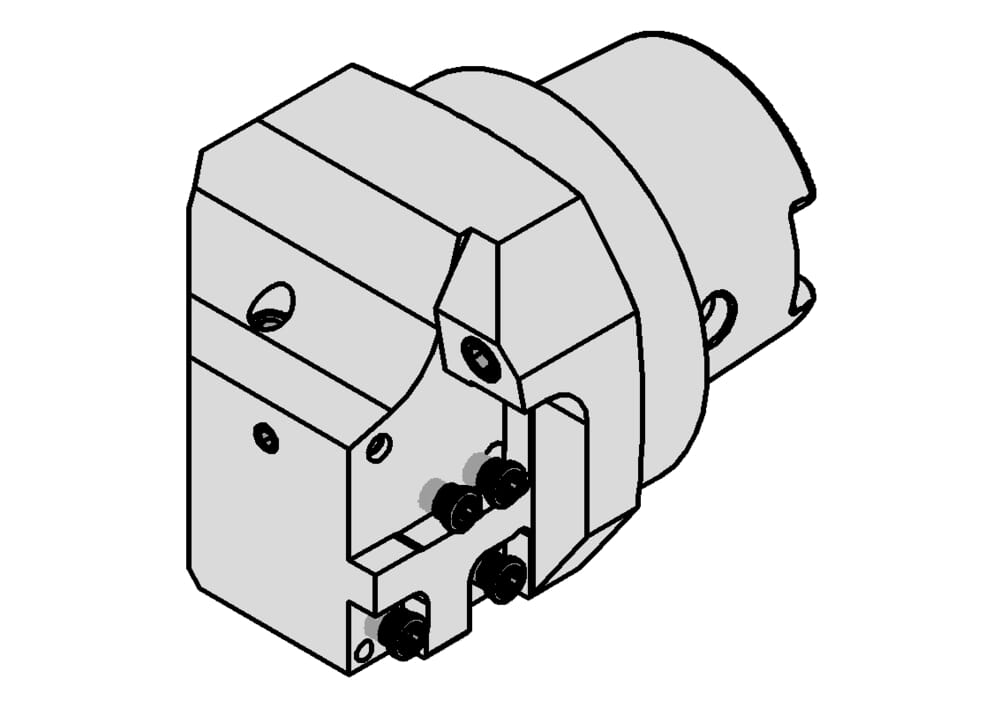

HORN base support HSK-L220.0063.K1.IK for Turning
us-cutting
No
tool-application
static
Adjustment dimension (formula) (f)
f1+f3
Katalog_CCTWS
220002
Distance from center (h1)
0.492 ˝
12.5 mm
dim-locating-face-to-cassette-met
1.732
44
Length of base from bore (l2)
2.126
54
Cassette system from the middle (f1)
0.634 ˝
16.1 mm
Bore diameter rotate (d1)
2.48 ˝
63 mm
