HDE.C6.20.080

Material number HDEC620080

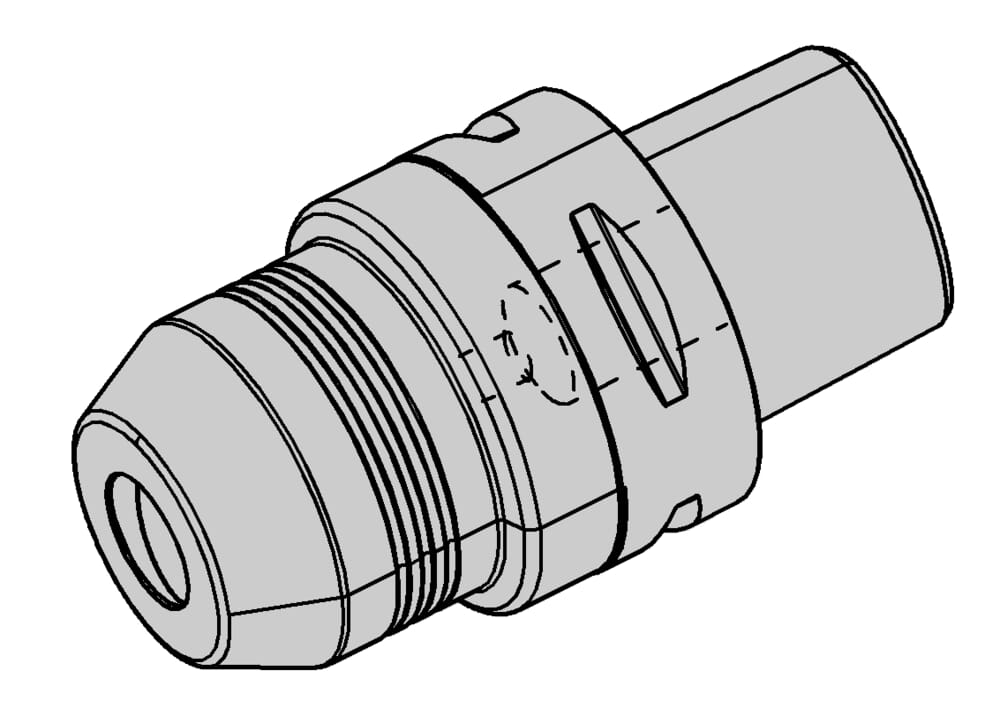

HORN Hydraulic Expansion Toolholder HDE.C6.20.080 for

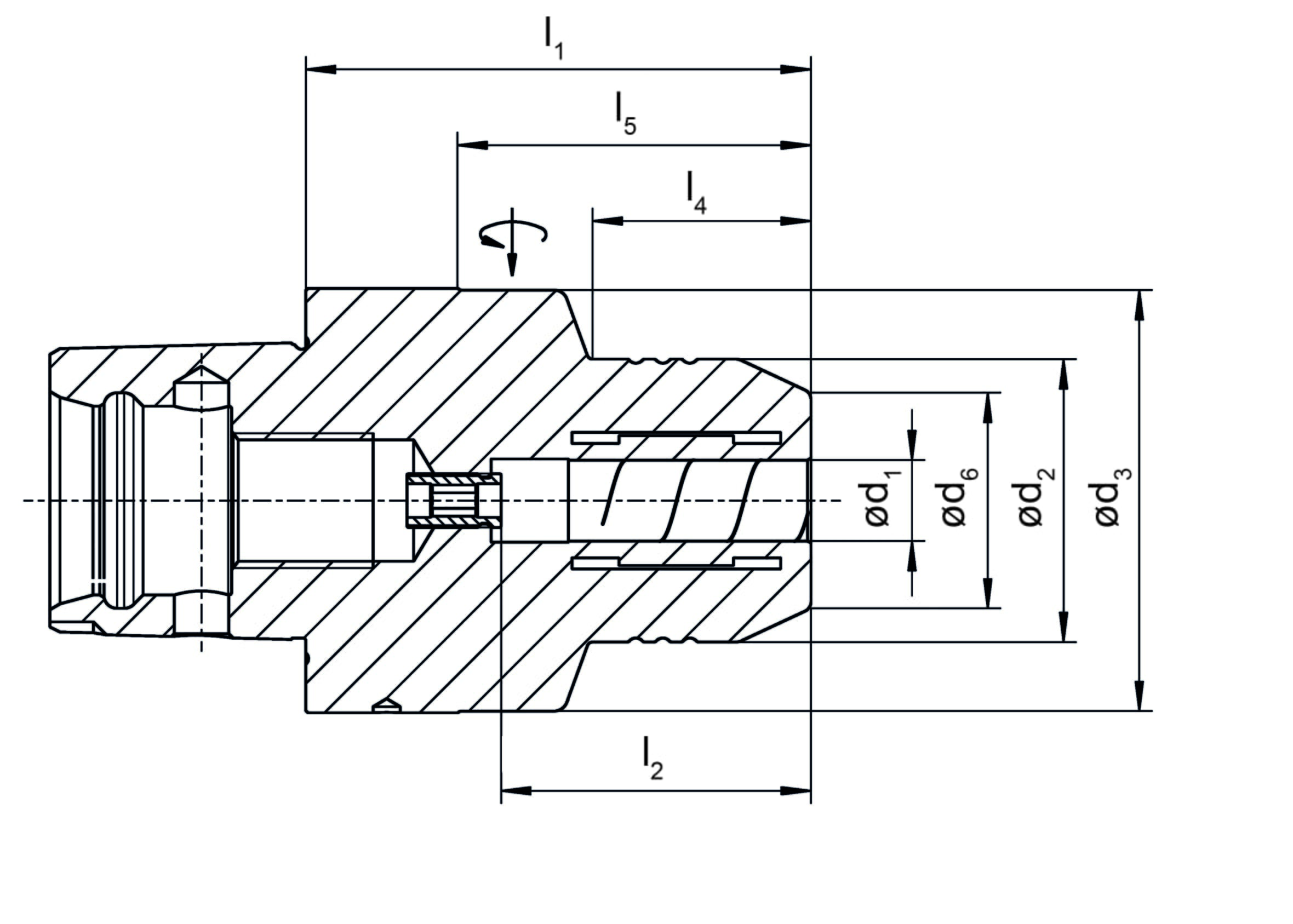

Total length (l1)

3.15 ˝

80 mm

Smallest outer diameter (d6)

1.496 ˝

38 mm

Neck length (l5)

2.26 ˝

57.4 mm

Clamping diameter (d1)

0.787 ˝

20 mm

Working length, Extension length (l4)

1.614 ˝

41 mm

Maximum clamping length (l2)

2.008 ˝

51 mm

Largest outer diameter (d3)

2.461 ˝

62.5 mm
