H117.AW28.32
Material number H117AW2832

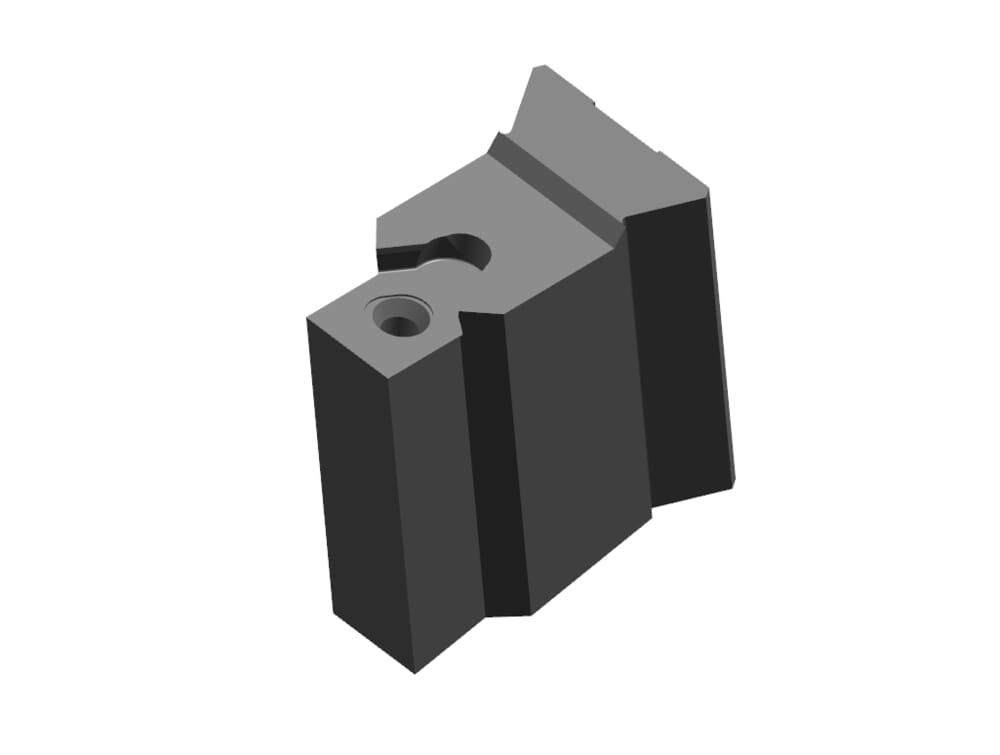

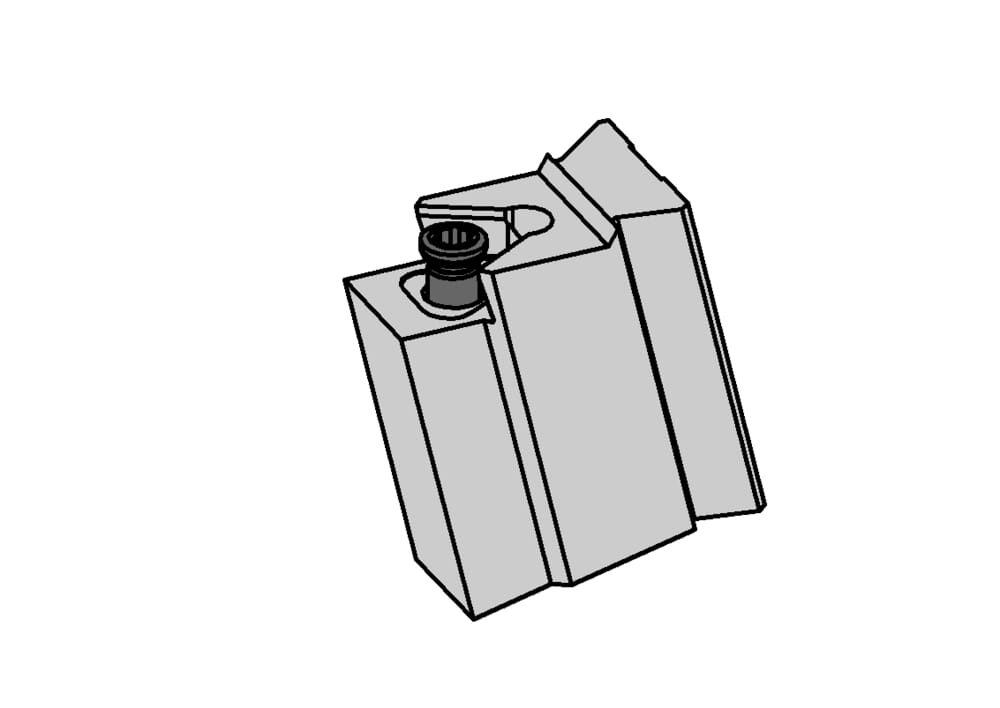

HORN Toolholders H117.AW28.32 for Turning
tool-application
static

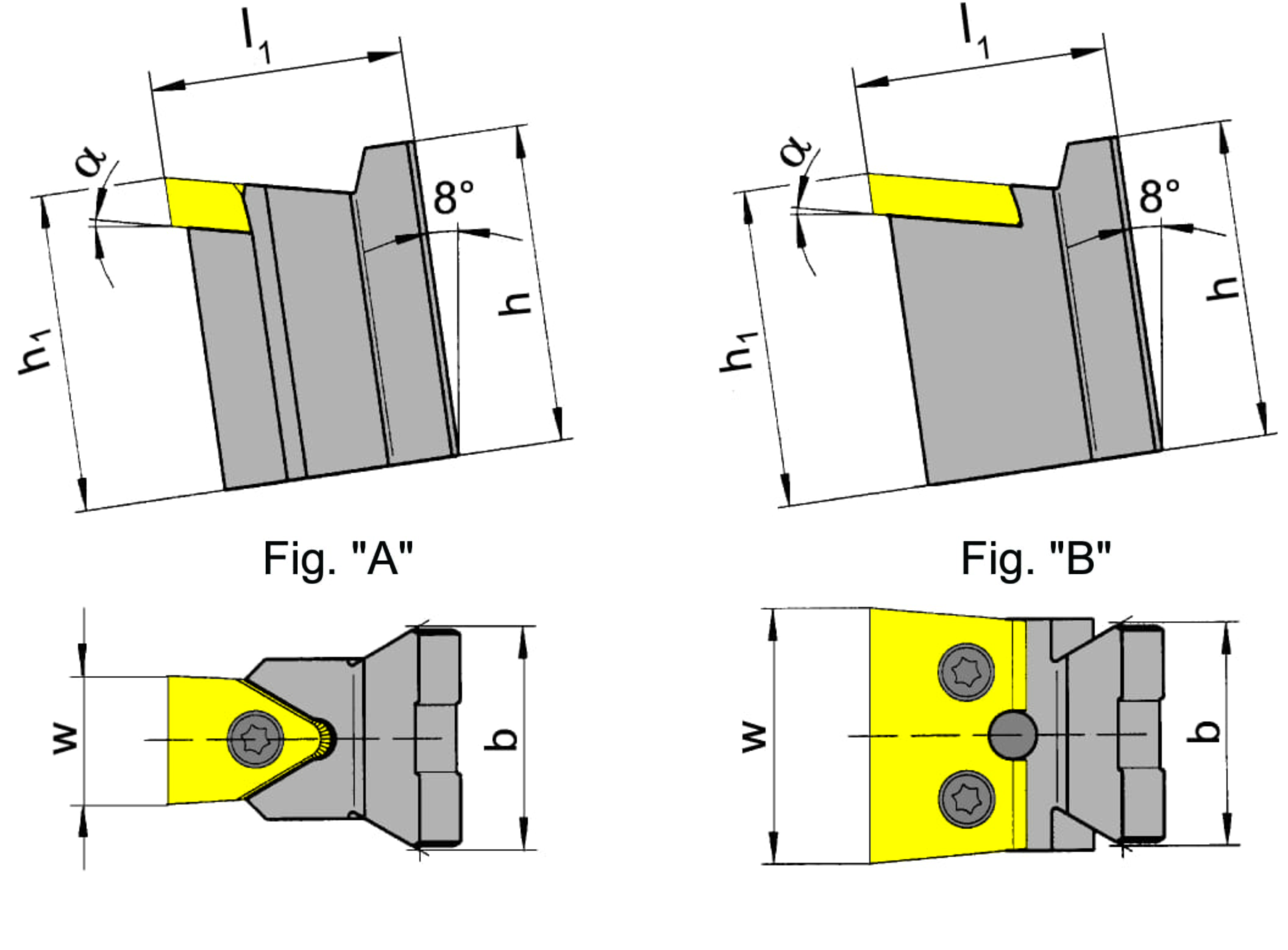

Insertion angle (α)
5 °
Width of groove (mm) (w)
1.26 ˝
32 mm
Katalog_CCTMS
AWN
Katalog_CCTWS
1173205
Shank width (b)
1.102 ˝
28 mm
Peak height (h1)
1.575 ˝
40 mm
Maximum insertion depth (tmax)
0.256 ˝
6.5 mm
Shank height (h)
1.417 ˝
36 mm
Total length (including cutting insert) (l1)
1.26 ˝
32 mm
| Downloads | |
|---|---|
| H117AW2832.DXF | Download |
| H117_AW28_32_20171121_233207010.STP | Download |
| Download all files | |
