H117.2525.32
Material number H117252532

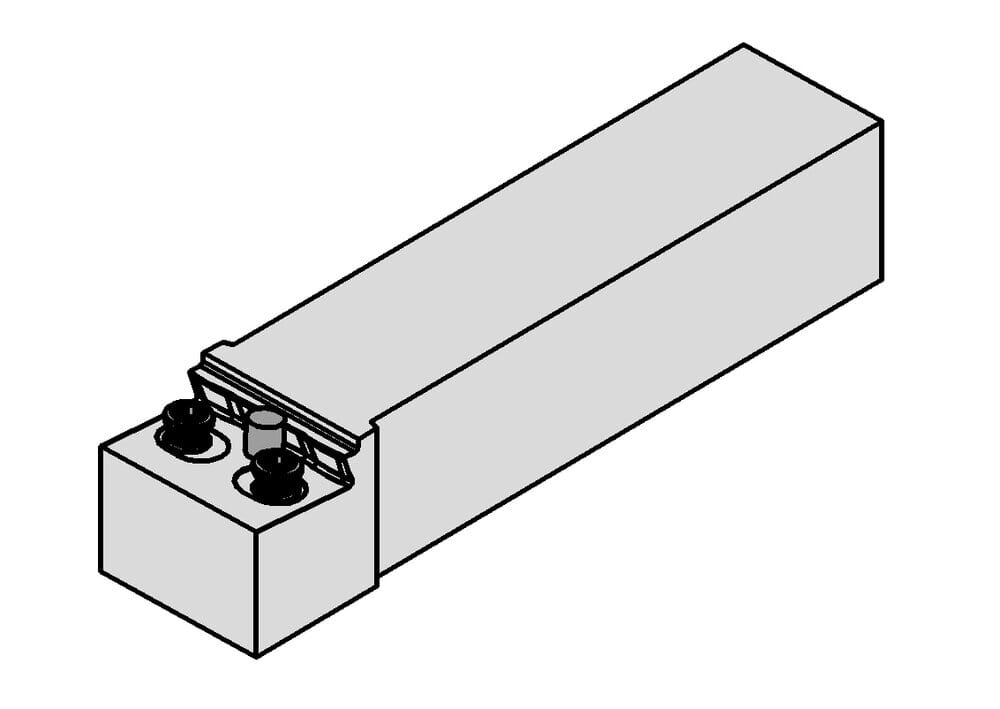

HORN Toolholders H117.2525.32 for Turning
us-cutting
No
tool-application
static
Insertion angle (α)
5 °
Working length (l2)
0.984 ˝
25 mm
Width of groove (mm) (w)
1.26 ˝
32 mm
Shank width (b)
0.984 ˝
25 mm
Katalog_CCTWS
1173205
Peak height (h1)
0.984 ˝
25 mm
length-overall-imp
5.906 ˝
150 mm
Shank height (h)
0.984 ˝
25 mm
Total length (including cutting insert) (l1)
5.906 ˝
150 mm
| Downloads | |
|---|---|
| H117_2525_32-STP.STP | Download |
| H117_2525_32-ISO.XML | Download |
| H117_2525_32-DIN.XML | Download |
| H117_2525_32-DXF.DXF | Download |
| Download all files | |
