H100.5210.26.10
Material number H10052102610

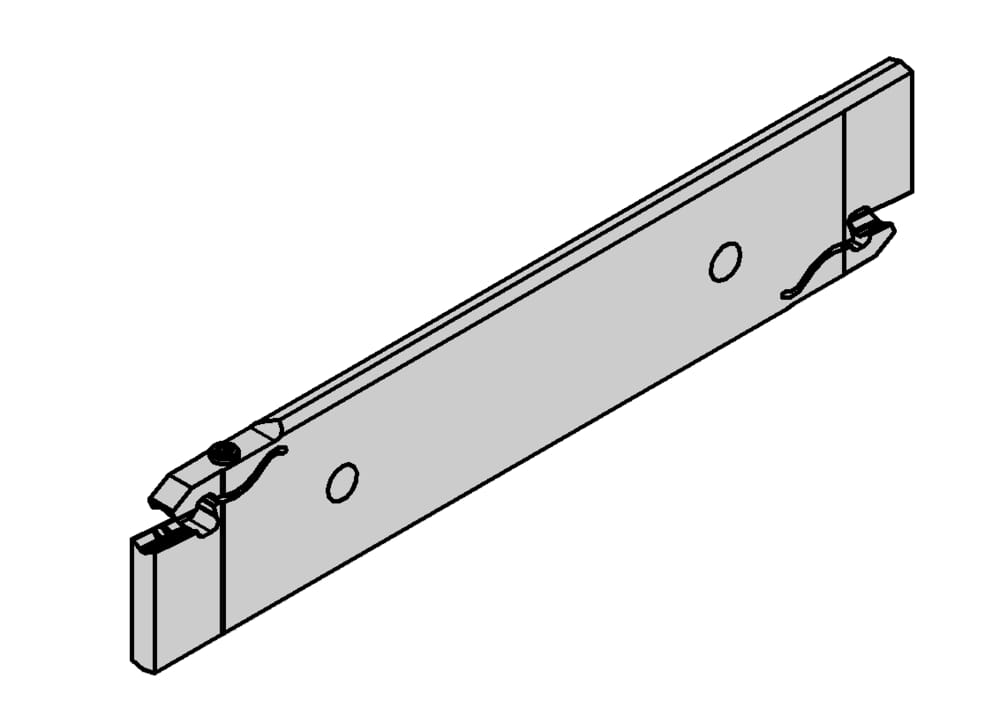

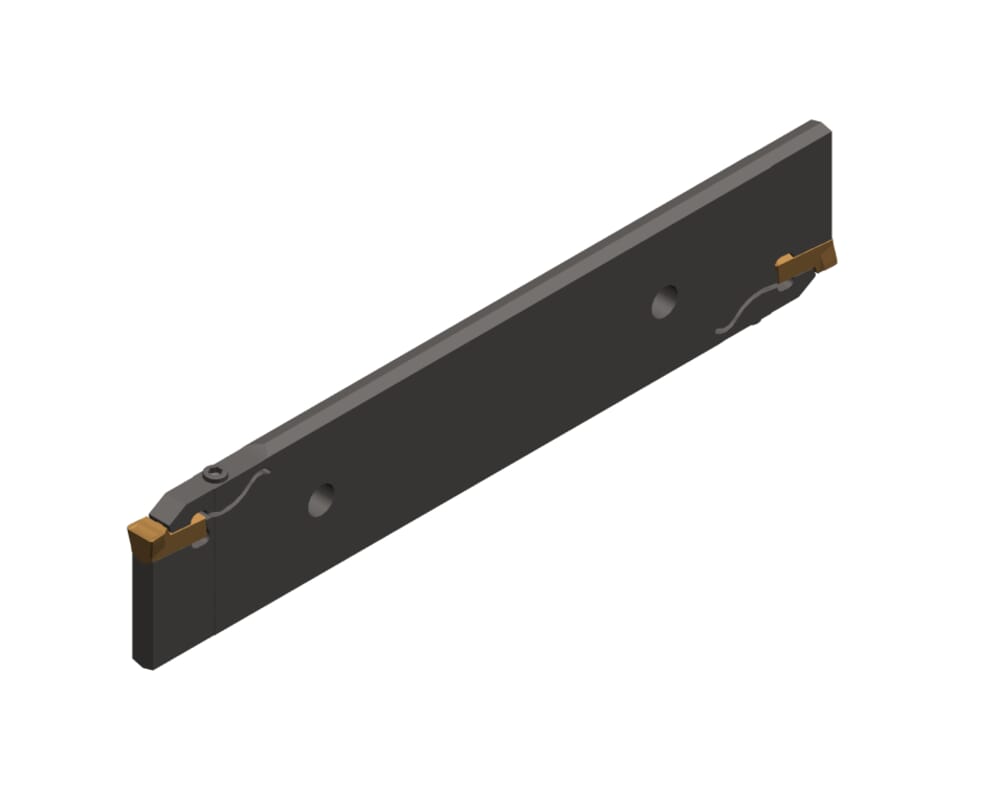

HORN Toolholder H100.5210.26.10 for Turning
us-cutting
No
tool-application
static
Katalog_CCTWS
100108

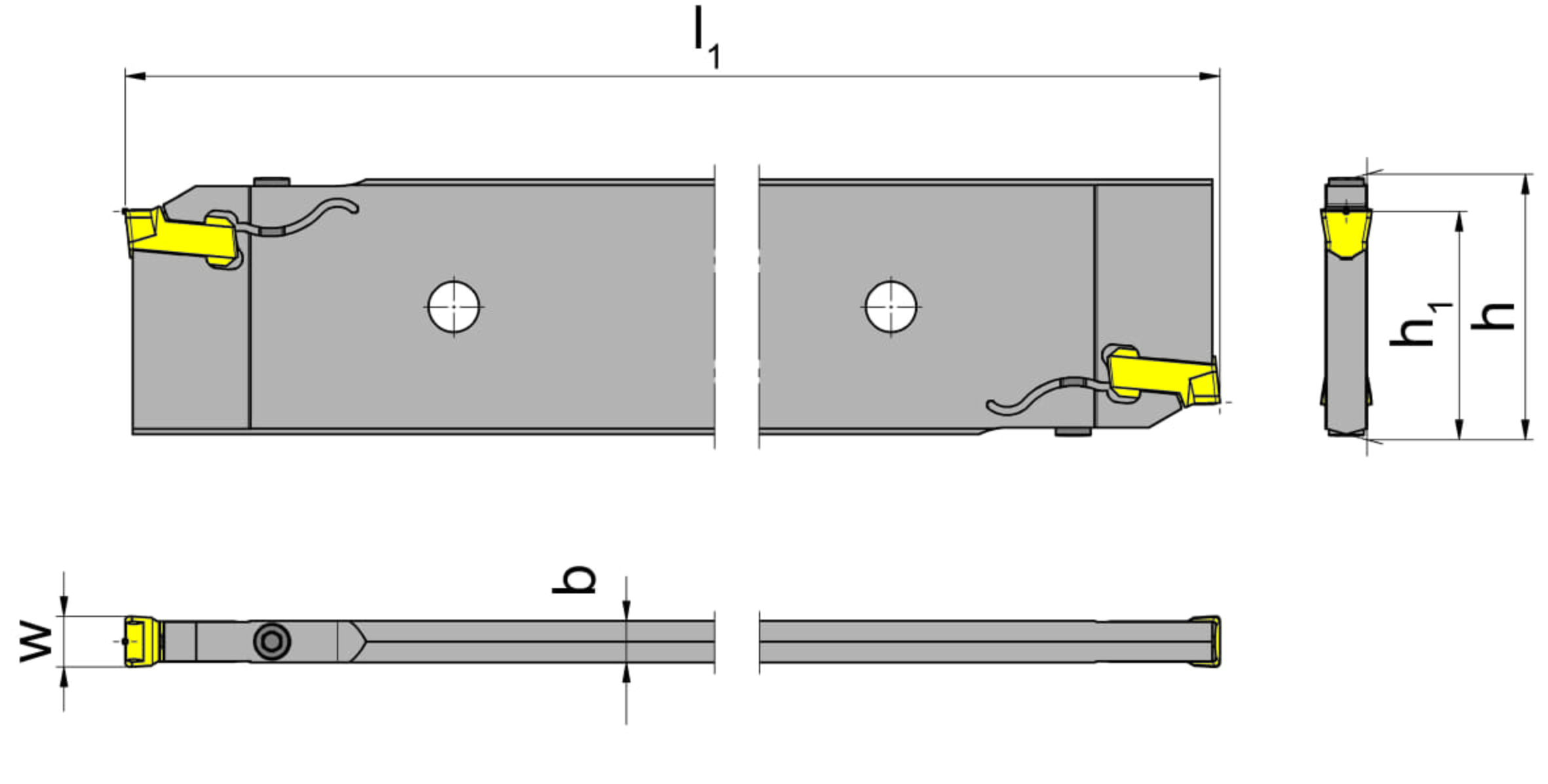

Width / thickness sword (b)
0.323 ˝
8.2 mm
clamping-range-max-met
2 mm
Peak height (h1)
1.772 ˝
45 mm
Head height (h)
2.071 ˝
52.6 mm
Total length (including cutting insert) (l1)
10.236 ˝
260 mm
| Downloads | |
|---|---|
| H100_5210_26_10-DXF.DXF | Download |
| H100_5210_26_10-STP.STP | Download |
| H100_5210_26_10-ISO.XML | Download |
| H100_5210_26_10-DIN.XML | Download |
| Download all files | |
