H100.5208.26.08
Material number H10052082608

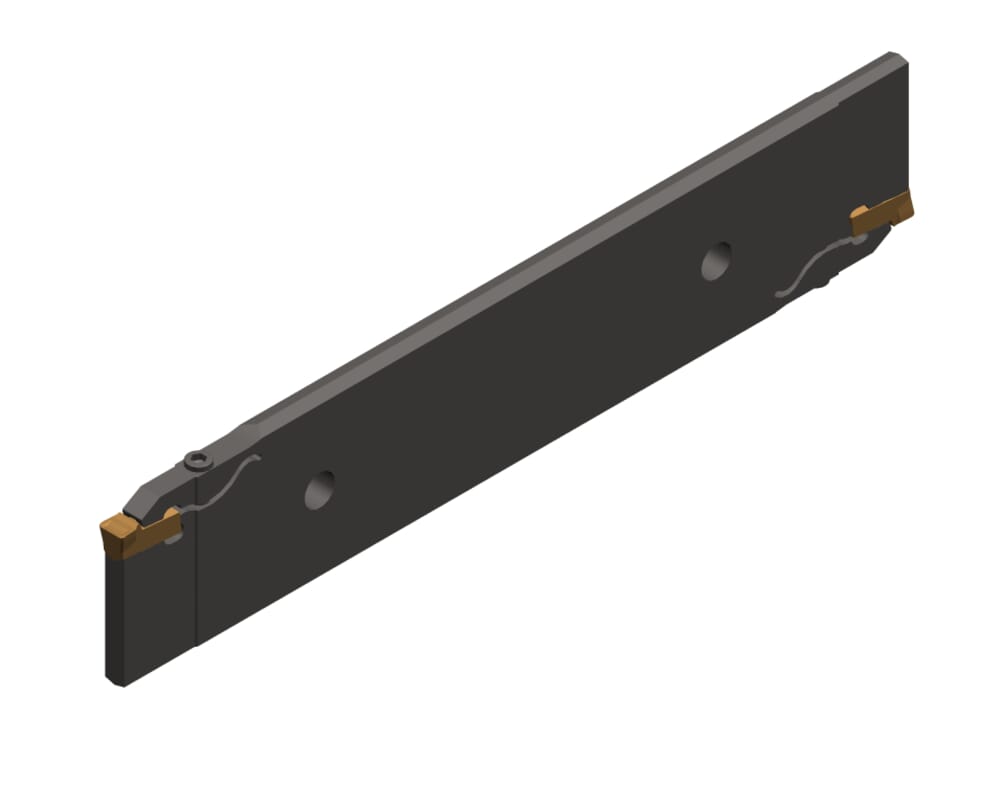

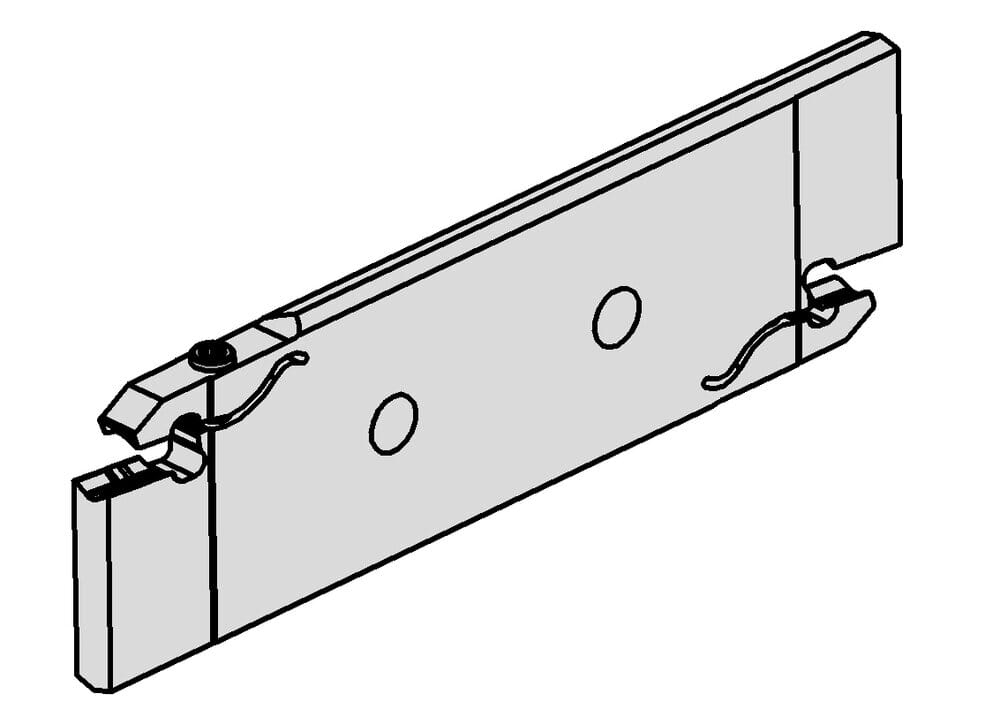

HORN Toolholder H100.5208.26.08 for Turning
us-cutting
No
tool-application
static
Katalog_CCTWS
100088
Width / thickness sword (b)
0.291 ˝
7.4 mm
clamping-range-max-met
2.8 mm
Peak height (h1)
1.772 ˝
45 mm
Head height (h)
2.071 ˝
52.6 mm
Total length (including cutting insert) (l1)
10.236 ˝
260 mm
| Downloads | |
|---|---|
| H100_5208_26_08-DXF.DXF | Download |
| H100_5208_26_08-STP.STP | Download |
| H100_5208_26_08-ISO.XML | Download |
| H100_5208_26_08-DIN.XML | Download |
| Download all files | |
