H100.3205.05
Material number H100320505

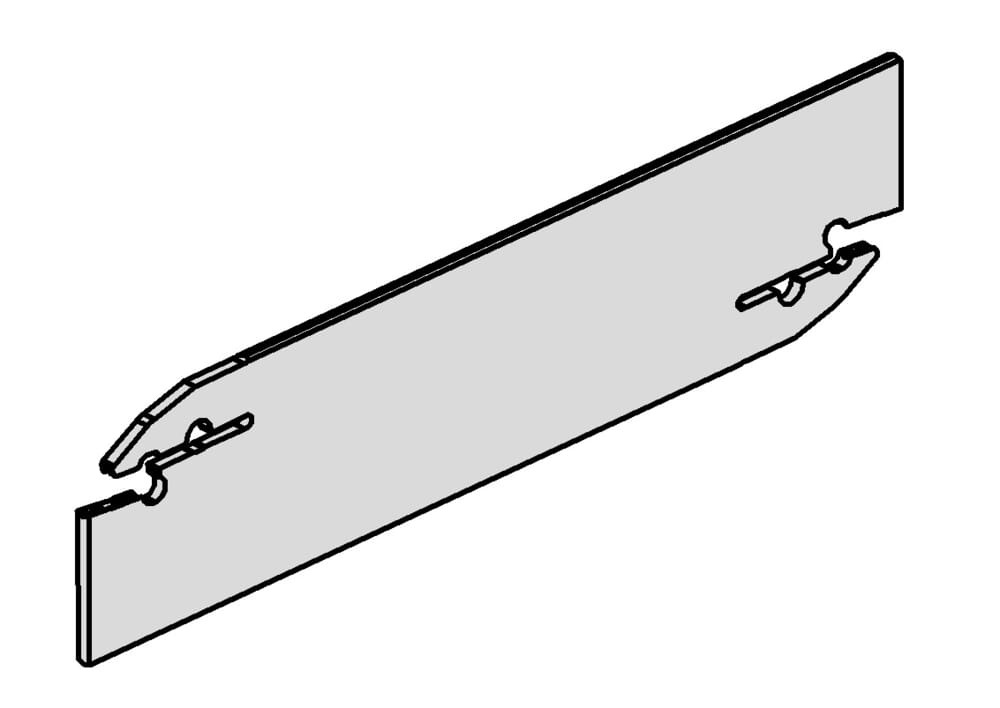

HORN Toolholders H100.3205.05 for Turning
us-cutting
No
tool-application
static
Katalog_CCTWS
100058
Width / thickness sword (b)
0.154 ˝
3.9 mm
clamping-range-max-met
2 mm
Peak height (h1)
0.976 ˝
24.8 mm
Maximum insertion depth (tmax)
2.165 ˝
55 mm
Head height (h)
1.26 ˝
32 mm
Total length (including cutting insert) (l1)
6.299 ˝
160 mm
Adjustment dimension (f1)
0.079 ˝
2 mm
| Downloads | |
|---|---|
| H100_3205_05-DXF.DXF | Download |
| H100_3205_05-STP.STP | Download |
| H100_3205_05-ISO.XML | Download |
| H100_3205_05-DIN.XML | Download |
| Download all files | |
