H100.3203.02
Material number H100320302

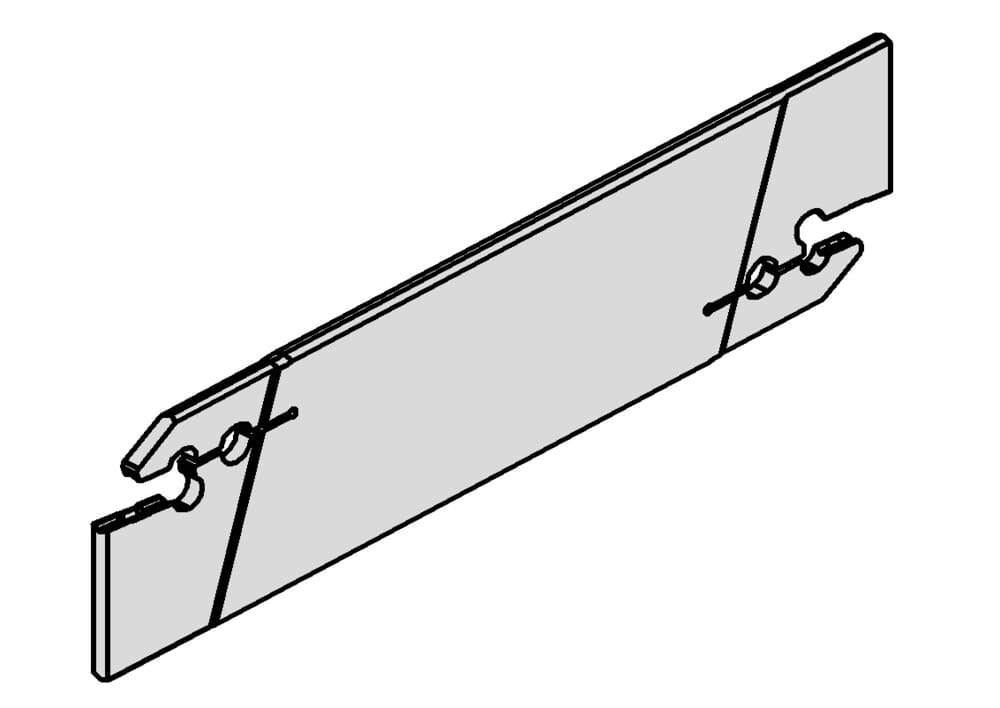

HORN Toolholders H100.3203.02 for Turning
clamping-range-max-met
2.4 mm
us-cutting
No
tool-application
static
Katalog_CCTWS
100028
Width / thickness <w (b1)
0.091 ˝
2.3 mm
Peak height (h1)
0.976 ˝
24.8 mm
Maximum insertion depth (tmax)
0.984 ˝
25 mm
Head height (h)
1.26 ˝
32 mm
Total length (including cutting insert) (l1)
5.906 ˝
150 mm
Adjustment dimension (f1)
0.045 ˝
1.15 mm
Width / thickness sword (b)
0.075 ˝
1.9 mm
