H100.3203.01
Material number H100320301
HORN Toolholders H100.3203.01 for Turning

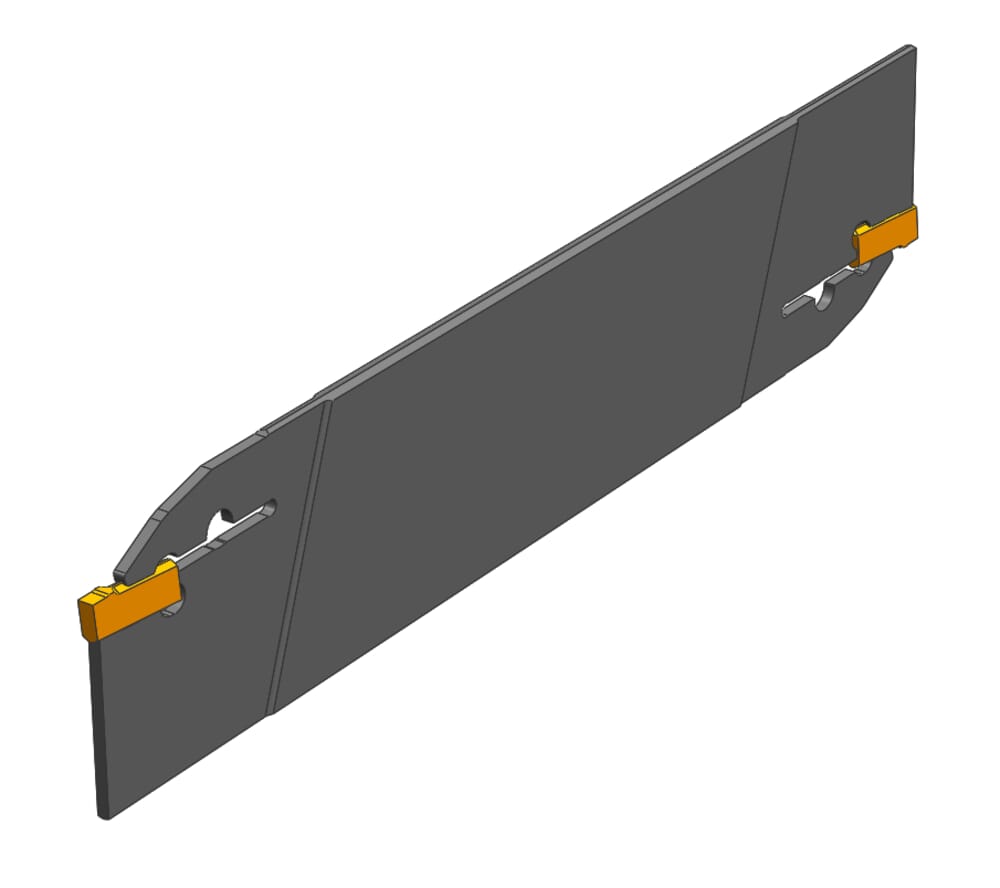

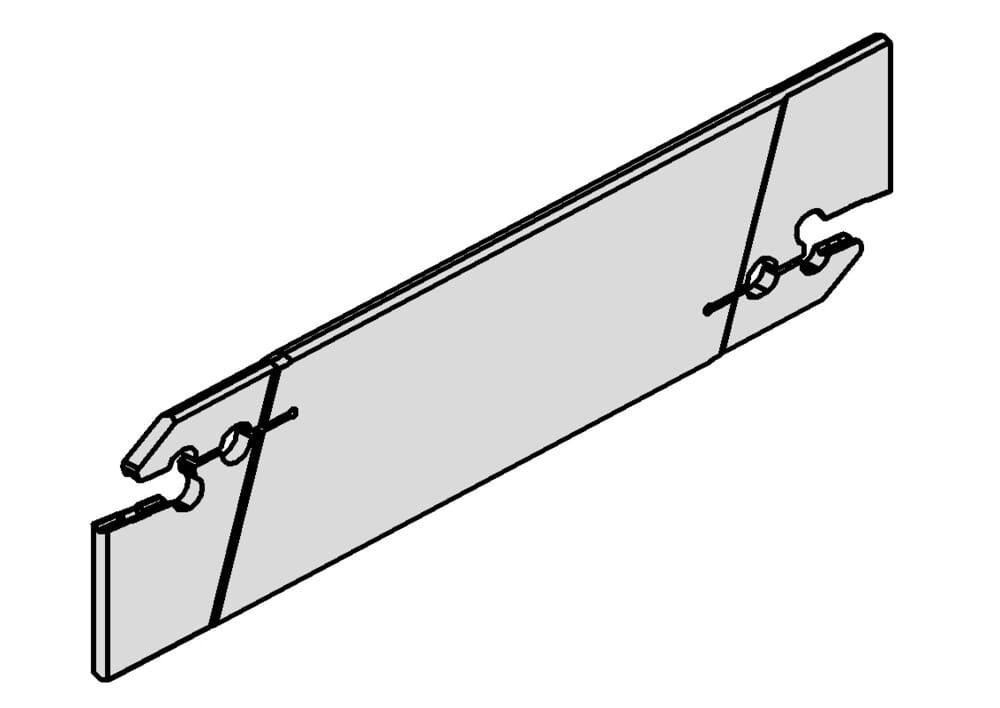

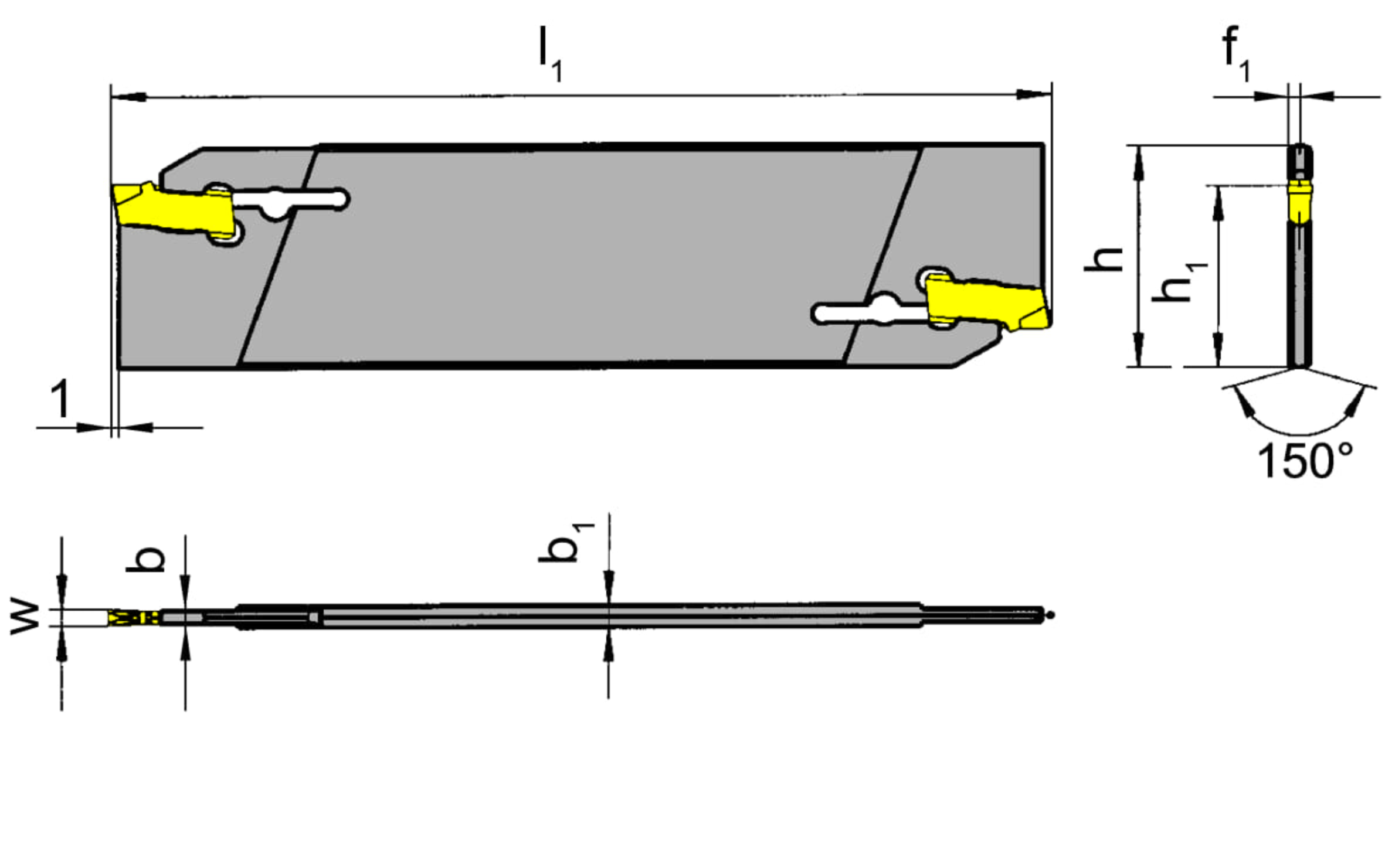

Peak height (h1)
0.976 ˝
24.8 mm
tool-application
static
Katalog_CCTWS
100018
clamping-range-max-met
2.8 mm
Width / thickness <w (b1)
0.091 ˝
2.3 mm
Maximum insertion depth (tmax)
0.984 ˝
25 mm
Head height (h)
1.26 ˝
32 mm
Total length (including cutting insert) (l1)
5.906 ˝
150 mm
Adjustment dimension (f1)
0.045 ˝
1.15 mm
Width / thickness sword (b)
0.059 ˝
1.5 mm
| Downloads | |
|---|---|
| H100_3203_01.DXF | Download |
| H100_3203_01_20171121_222037142.STP | Download |
| Download all files | |
