H100.2604.8.04.IK
Material number H1002604804IK

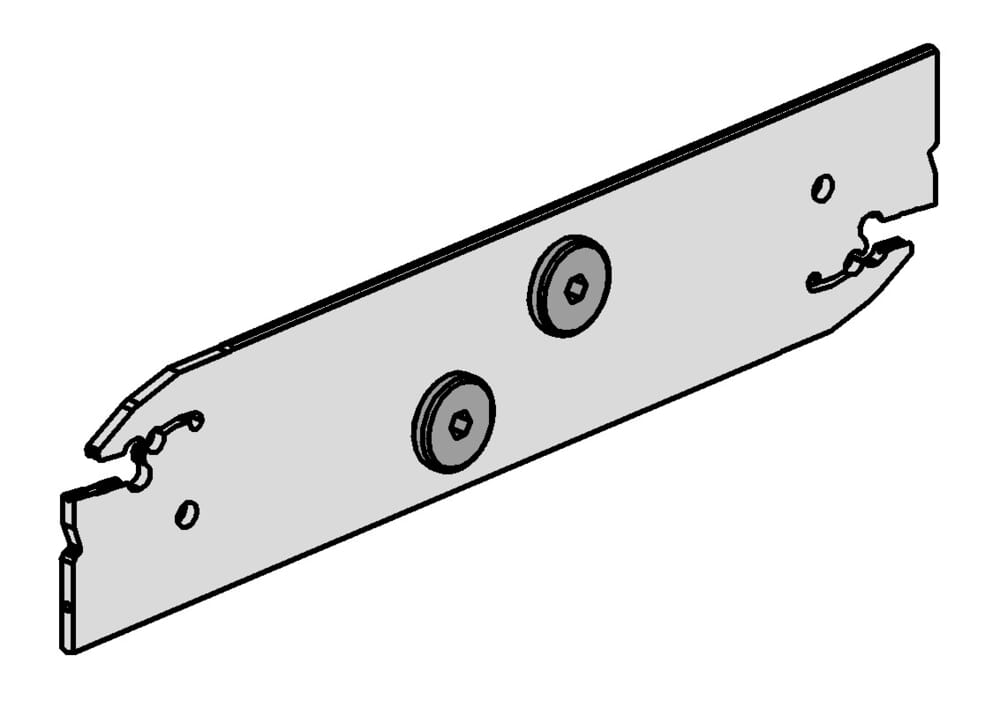

HORN Toolholder H100.2604.8.04.IK for Turning
Total length (including cutting insert) (l1)
4.331 ˝
110 mm
us-cutting
No
Katalog_CCTWS
100049;100048
tool-application
static
Peak height (h1)
0.843 ˝
21.4 mm
Maximum insertion depth (tmax)
1.378 ˝
35 mm
Head height (h)
1.024 ˝
26 mm
Adjustment dimension (f1)
0.061 ˝
1.55 mm
Width / thickness sword (b)
0.122 ˝
3.1 mm
| Downloads | |
|---|---|
| H100_2604_8_04_IK-DXF.DXF | Download |
| H100_2604_8_04_IK-STP.STP | Download |
| H100_2604_8_04_IK-ISO.XML | Download |
| H100_2604_8_04_IK-DIN.XML | Download |
| Download all files | |
