DSSNL2525M1204-1A
Toolholder
Material number DSSNL2525M1204-1A

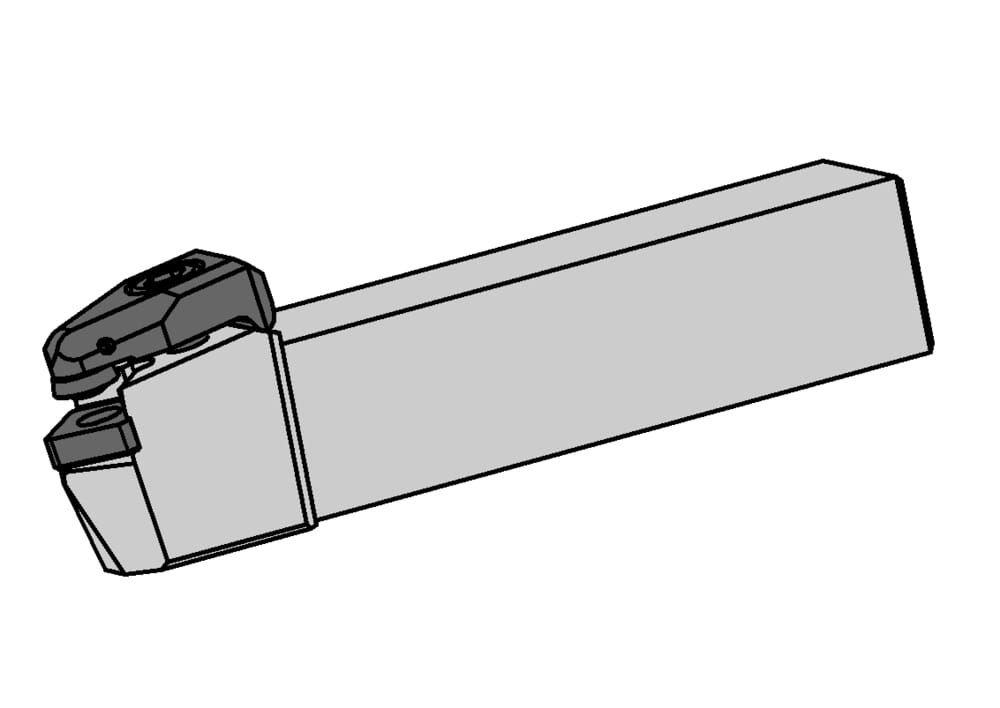

HORN Toolholder DSSNL2525M1204-1A for Turning

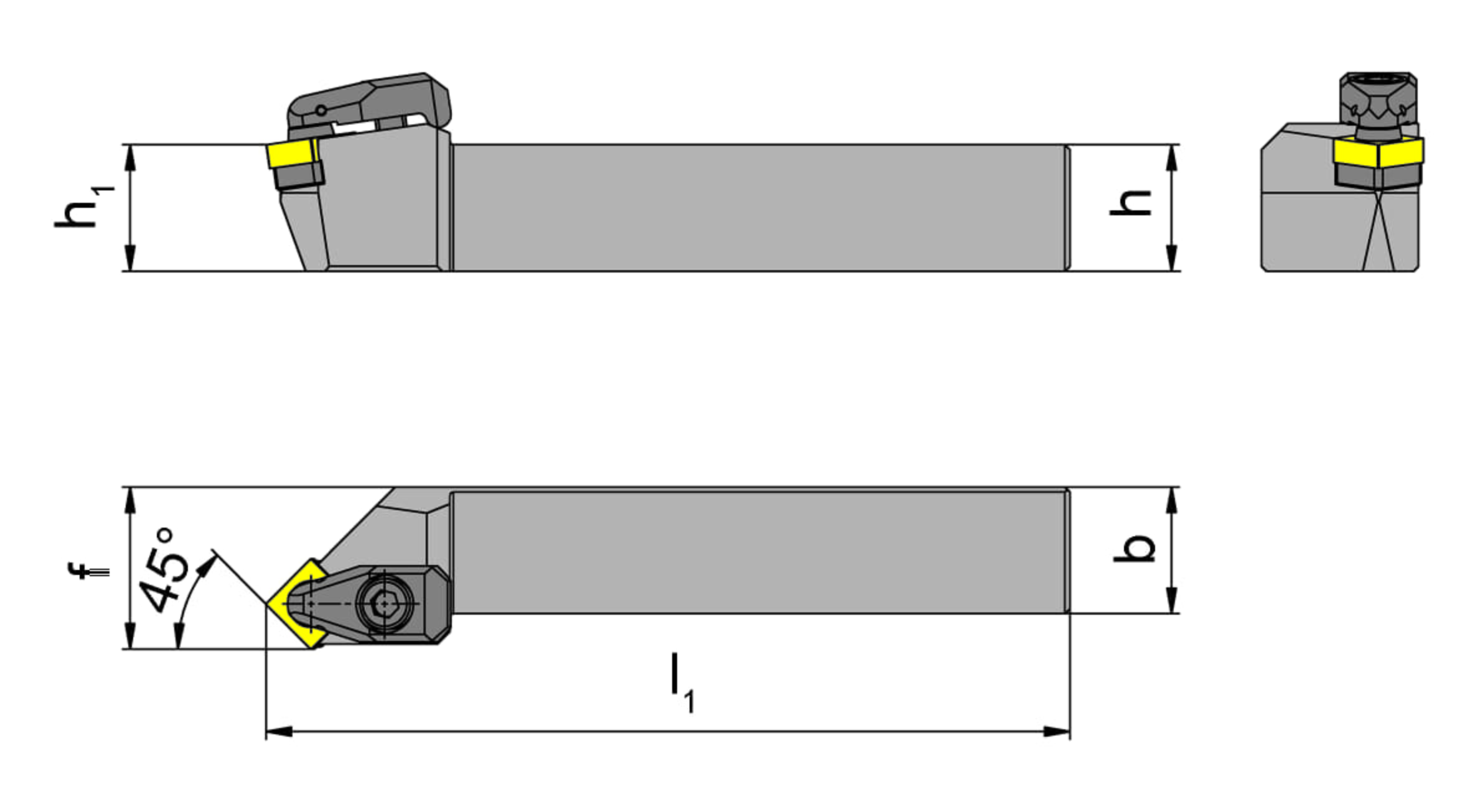

Shank width (b)
0.984 ˝
25 mm
Adjustment dimension (f)
1.26 ˝
32 mm
Total length (including cutting insert) (l1)
5.906 ˝
150 mm
Shank height (h)
0.984 ˝
25 mm
Peak height (h1)
0.984 ˝
25 mm
tool-application
static
| Downloads | |
|---|---|
| DSSNL2525M1204-1A.STP | Download |
| Download all files | |
