DSRV.4.160.020.20 IG3I

Recommended:

Also suitable for:

Material number DSRV416002020IG3I

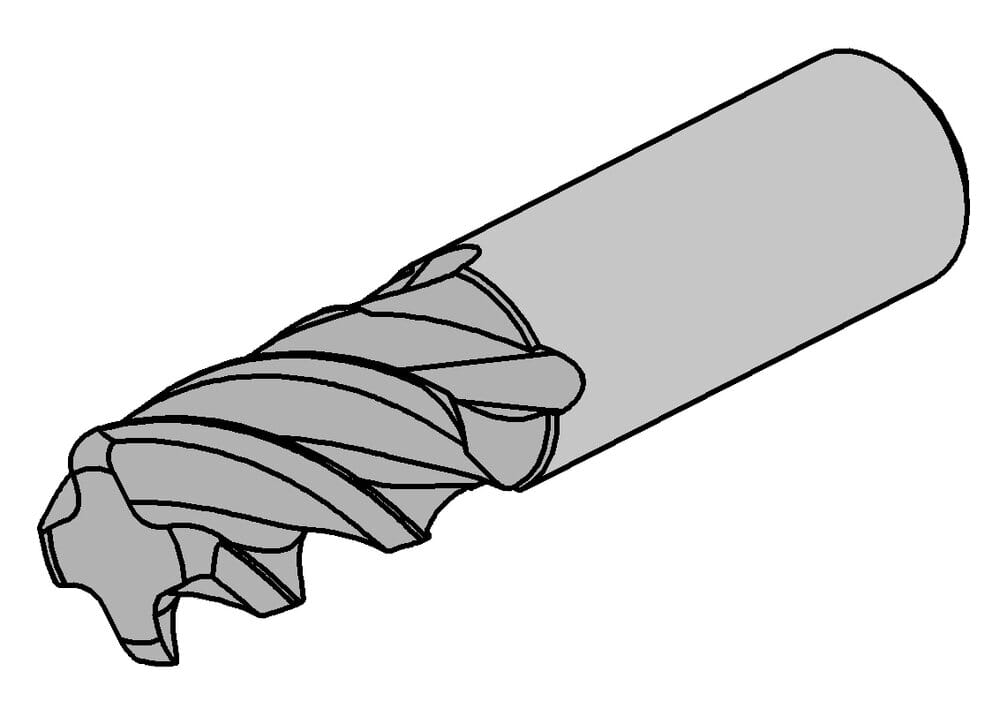

HORN DS-end mill Ø16 R0,2 2xØ Z4 DSRV.4.160.020.20 IG3I for Milling

Total length (l1)

3.228 ˝

82 mm

us-cutting

Yes

tool-application

rotating

Effective cutting length (l2)

0.945 ˝

24 mm

Neck diameter (d3)

0.598 ˝

15.2 mm

Shank diameter (d2)

0.63 ˝

16 mm

Corner radius (r)

0.008 ˝

0.2 mm

Cutting diameter (d1)

0.63 ˝

16 mm

Neck length (l3)

1.26 ˝

32 mm
