DSRA.3.200.010.053 MG3K
Recommended:
Material number DSRA3200010053MG3K

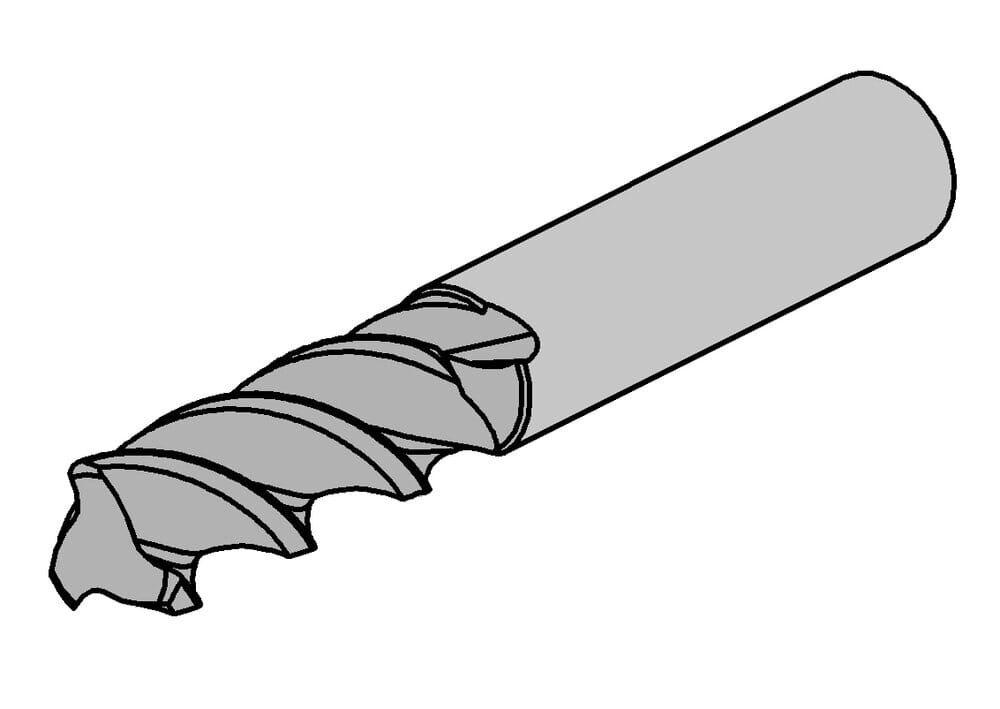

HORN DS endmill DSRA.3.200.010.053 MG3K for Milling
Effective cutting length (l2)
3.937 ˝
100 mm
us-cutting
Yes
tool-application
rotating
Total length (l1)
6.417 ˝
163 mm
Neck diameter (d3)
0.748 ˝
19 mm
Shank diameter (d2)
0.787 ˝
20 mm
Corner radius (r)
0.004 ˝
0.1 mm
Cutting diameter (d1)
0.787 ˝
20 mm
Neck length (l3)
4.173 ˝
106 mm
| Downloads | |
|---|---|
| DSRA_3_200_010_053_MG3K-DXF.DXF | Download |
| DSRA_3_200_010_053_MG3K-STP.STP | Download |
| DSRA_3_200_010_053_MG3K-ISO.XML | Download |
| DSRA_3_200_010_053_MG3K-DIN.XML | Download |
| Download all files | |
