DSRA.3.160.100.030 MG3K
Material number DSRA3160100030MG3K

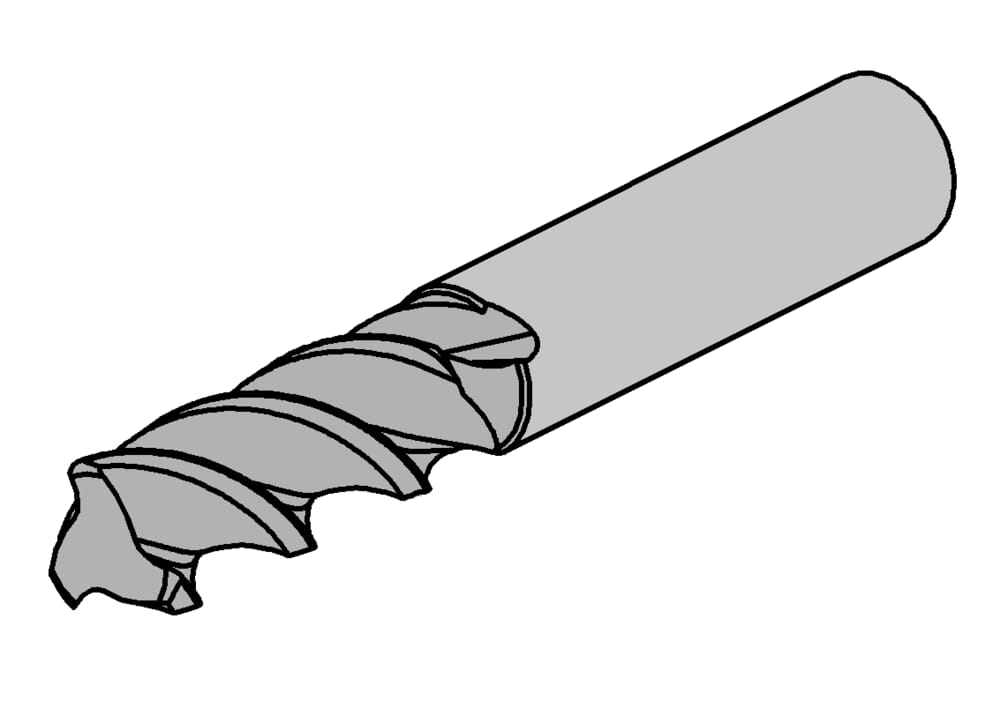

HORN DS endmill DSRA.3.160.100.030 MG3K for Milling
Corner radius (r)
0.039 ˝
1 mm
tool-application
rotating
Total length (l1)
4.252 ˝
108 mm
Effective cutting length (l2)
1.575 ˝
40 mm
Neck diameter (d3)
0.591 ˝
15 mm
Shank diameter (d2)
0.63 ˝
16 mm
Cutting diameter (d1)
0.63 ˝
16 mm
Neck length (l3)
1.89 ˝
48 mm
| Downloads | |
|---|---|
| DSRA3160100030.DXF | Download |
| DSRA3160100030_20230112_202657270.STP | Download |
| Download all files | |
