DSRA.3.120.100.070 MG3K
Recommended:
Material number DSRA3120100070MG3K

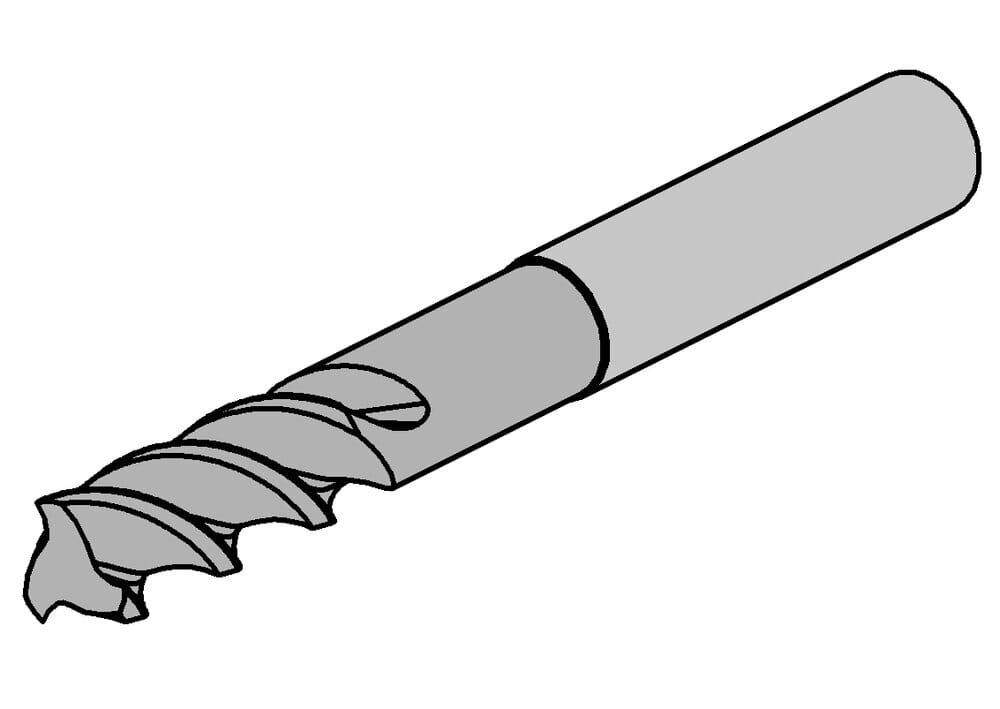

HORN DS endmill DSRA.3.120.100.070 MG3K for Milling
Effective cutting length (l2)
2.362 ˝
60 mm
cutting
1
tool-application
rotating
Total length (l1)
5.512 ˝
140 mm
Neck diameter (d3)
0.453 ˝
11.5 mm
Shank diameter (d2)
0.472 ˝
12 mm
Corner radius (r)
0.039 ˝
1 mm
Cutting diameter (d1)
0.472 ˝
12 mm
Neck length (l3)
3.307 ˝
84 mm
| Downloads | |
|---|---|
| DSRA_3_120_100_070_MG3K-ISO.XML | Download |
| DSRA_3_120_100_070_MG3K-DIN.XML | Download |
| Download all files | |
