DSRA.3.120.100.053 MG3K
Recommended:
Material number DSRA3120100053MG3K

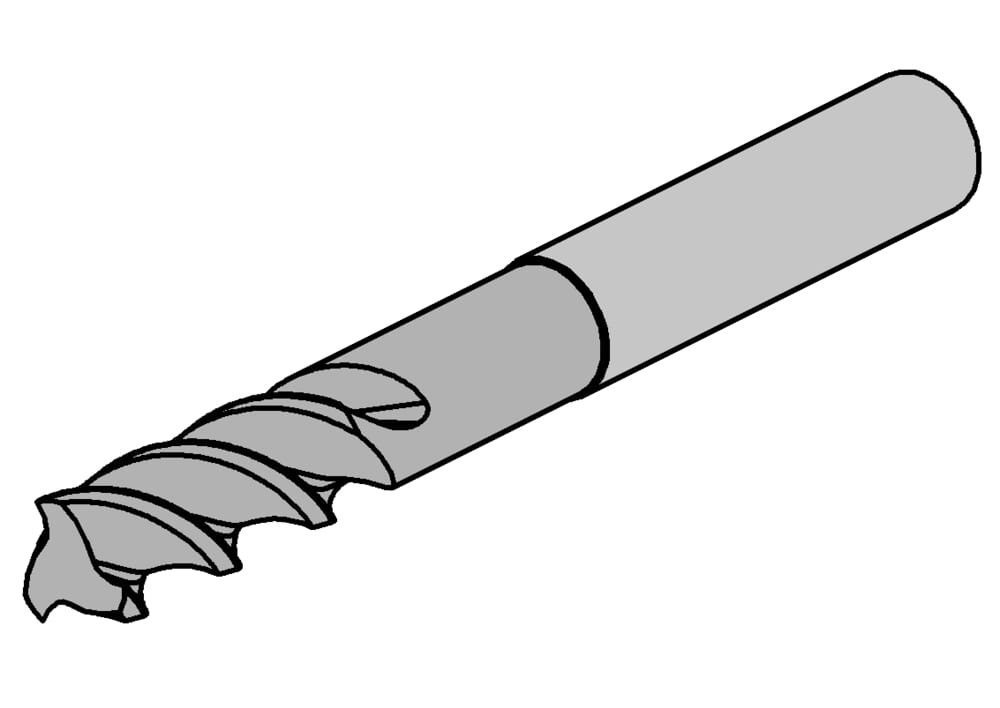

HORN DS endmill DSRA.3.120.100.053 MG3K for Milling
Corner radius (r)
0.039 ˝
1 mm
tool-application
rotating
Total length (l1)
4.252 ˝
108 mm
Effective cutting length (l2)
2.362 ˝
60 mm
Neck diameter (d3)
0.453 ˝
11.5 mm
Shank diameter (d2)
0.472 ˝
12 mm
Cutting diameter (d1)
0.472 ˝
12 mm
Neck length (l3)
2.504 ˝
63.6 mm
| Downloads | |
|---|---|
| 312010005.STP | Download |
| 312010005_20240916_144649238.DXF | Download |
| Download all files | |
