back to products
DSRA3160010030_PICTO.TIF

DSRA.3.120.010.053 MG3K

ZAEHNEZAHL_Z3.EPS NUTFRAESEN.EPS ECKFRAESEN.EPS ZIRKULAREINTAUCHEN.EPS RAMPE_EINTAUCHEN.EPS TASCHENFRAESEN.EPS ZENTRUMSSCHNEIDEND.EPS VHM_ECKRADIUS.EPS SCHAFTFORM_HA.EPS RUNDLAUF_0_01.EPS

Material number DSRA3120010053MG3K

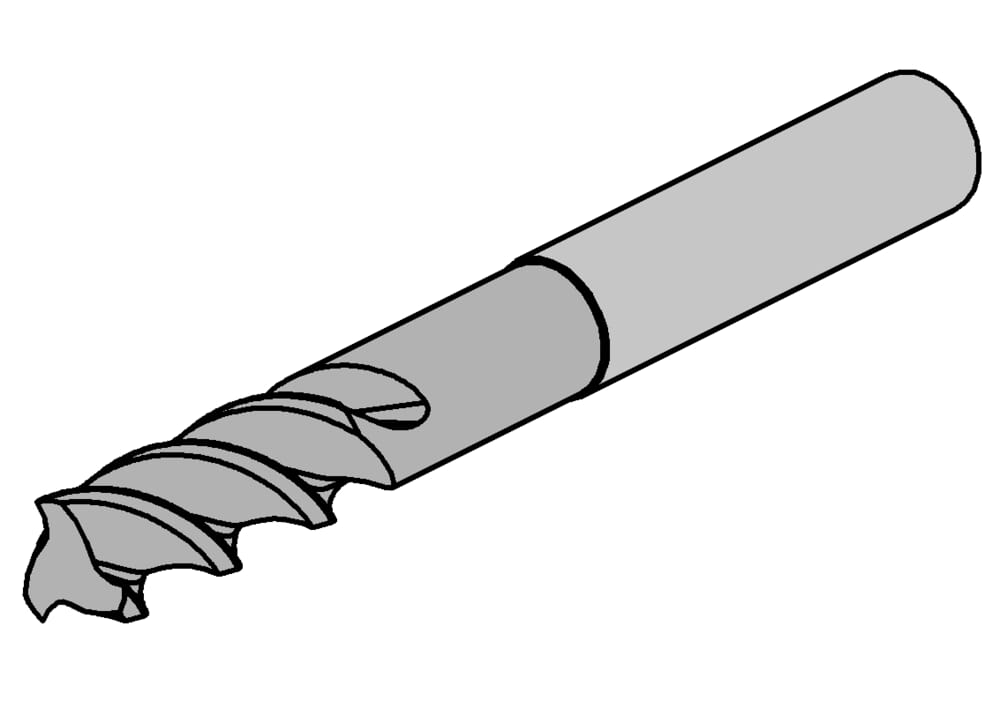

HORN DS-end mill DSRA.3.120.010.053 MG3K for Milling

Cutting data and technical instructions

Corner radius (r)
0.004 ˝
0.1 mm
tool-application
rotating
Total length (l1)
4.252 ˝
108 mm
Effective cutting length (l2)
2.362 ˝
60 mm
Neck diameter (d3)
0.453 ˝
11.5 mm
Shank diameter (d2)
0.472 ˝
12 mm
Cutting diameter (d1)
0.472 ˝
12 mm
Neck length (l3)
2.504 ˝
63.6 mm
Downloads
DSRA3120010053.DXF Download
DSRA3120010053_20230112_202540782.STP Download
Download all files
