DSRA.3.100.010.050 MG3K
Recommended:
Material number DSRA3100010050MG3K

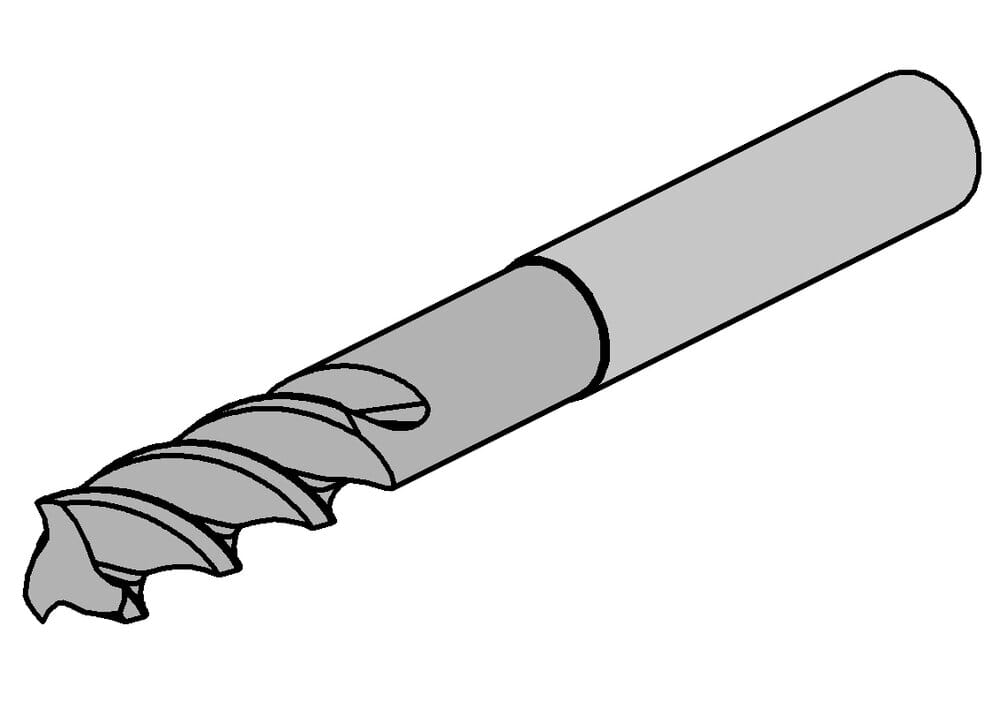

HORN DS endmill DSRA.3.100.010.050 MG3K for Milling
Effective cutting length (l2)
0.984 ˝
25 mm
us-cutting
Yes
tool-application
rotating
Total length (l1)
4.252 ˝
108 mm
Neck diameter (d3)
0.374 ˝
9.5 mm
Shank diameter (d2)
0.394 ˝
10 mm
Corner radius (r)
0.004 ˝
0.1 mm
Cutting diameter (d1)
0.394 ˝
10 mm
Neck length (l3)
1.969 ˝
50 mm
| Downloads | |
|---|---|
| DSRA_3_100_010_050_MG3K-DXF.DXF | Download |
| DSRA_3_100_010_050_MG3K-STP.STP | Download |
| DSRA_3_100_010_050_MG3K-ISO.XML | Download |
| DSRA_3_100_010_050_MG3K-DIN.XML | Download |
| Download all files | |
