DR.11.11000.H7.A7 DT2H
Material number DR1111000H7A7DT2H

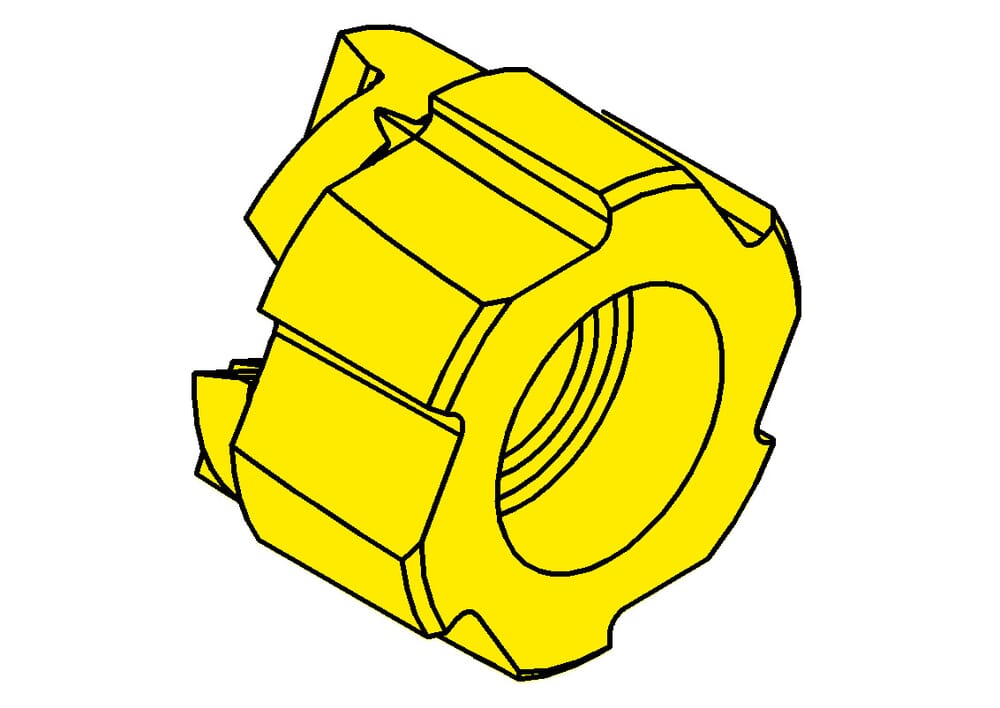

HORN DR Small Ream insert DR.11.11000.H7.A7 DT2H for Reaming
Cutting diameter (Ds)
0.433 ˝
11 mm
tool-application
rotating
First cut length (m1)
0.01 ˝
0.25 mm
us-cutting
Yes
Effective cutting length (l2)
0.177 ˝
4.5 mm
| Downloads | |
|---|---|
| DR_11_11000_H7_A7_DT2H-DXF.DXF | Download |
| DR_11_11000_H7_A7_DT2H-STP.STP | Download |
| DR_11_11000_H7_A7_DT2H-ISO.XML | Download |
| DR_11_11000_H7_A7_DT2H-DIN.XML | Download |
| Download all files | |
