DR.11.10000.H7.B7 HL3H

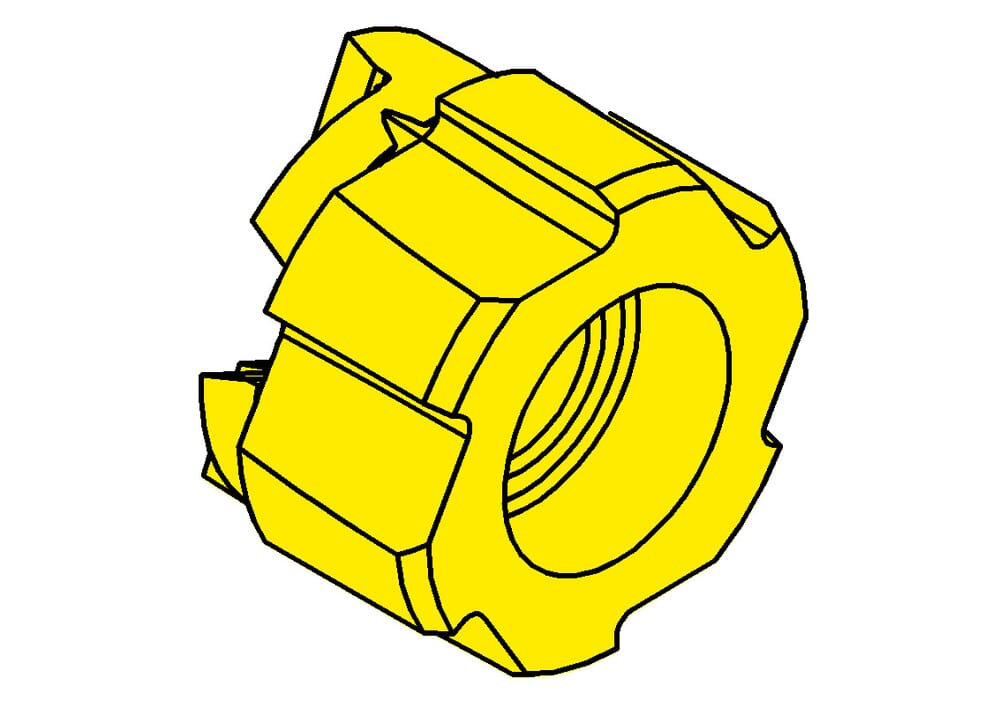

DR Small Ream insert
Material number DR1110000H7B7HL3H
HORN DR Small Ream insert DR.11.10000.H7.B7 HL3H for Reaming
Cutting diameter (Ds)
0.394 ˝
10 mm
First cut length (m1)
0.021 ˝
0.54 mm
Effective cutting length (l2)
0.177 ˝
4.5 mm
tool-application
rotating
| Downloads | |
|---|---|
| DR1110000H7B7_20210630_104619306.STP | Download |
| DR1110000H7B7.DXF | Download |
| Download all files | |
