DR.101.09000.H7.B1 HL3H
Material number DR10109000H7B1HL3H

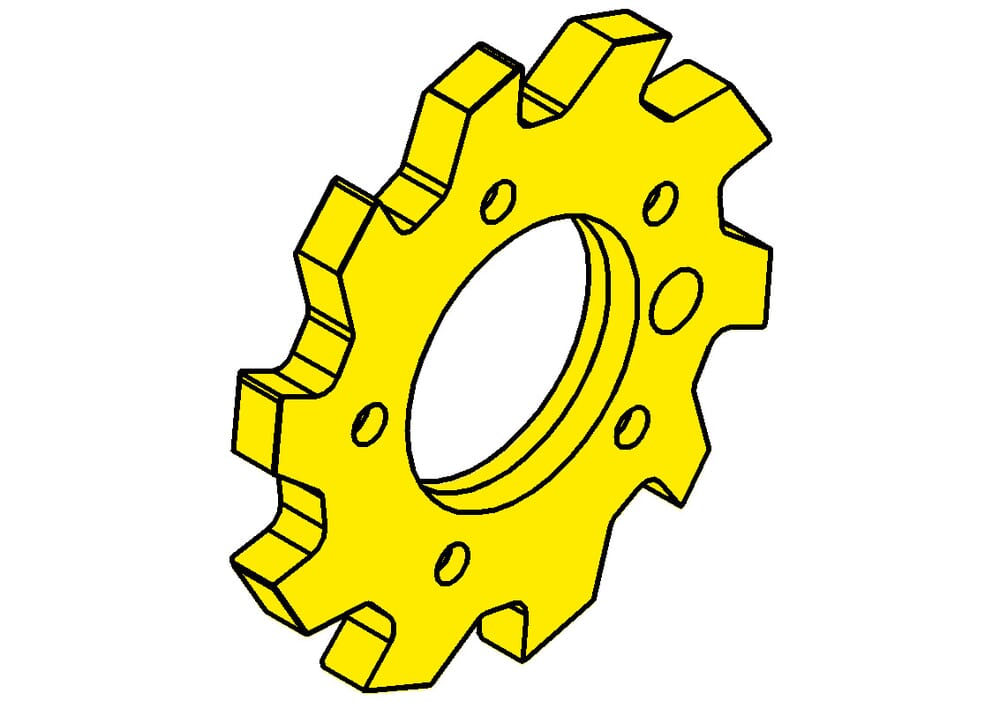

HORN DR Ream insert DR.101.09000.H7.B1 HL3H for Reaming
Cutting diameter (Ds)
3.543 ˝
90 mm
First cut length (m1)
0.038 ˝
0.97 mm
Effective cutting length (l2)
0.169 ˝
4.3 mm
tool-application
rotating
cutting
1
us-cutting
Yes
| Downloads | |
|---|---|
| DR_101_09000_H7_B1_HL3H-DXF.DXF | Download |
| DR_101_09000_H7_B1_HL3H-STP.STP | Download |
| DR_101_09000_H7_B1_HL3H-ISO.XML | Download |
| DR_101_09000_H7_B1_HL3H-DIN.XML | Download |
| Download all files | |
