DCN.4.120.05.00.6.12 RC45

Material number DCN41200500612RC45

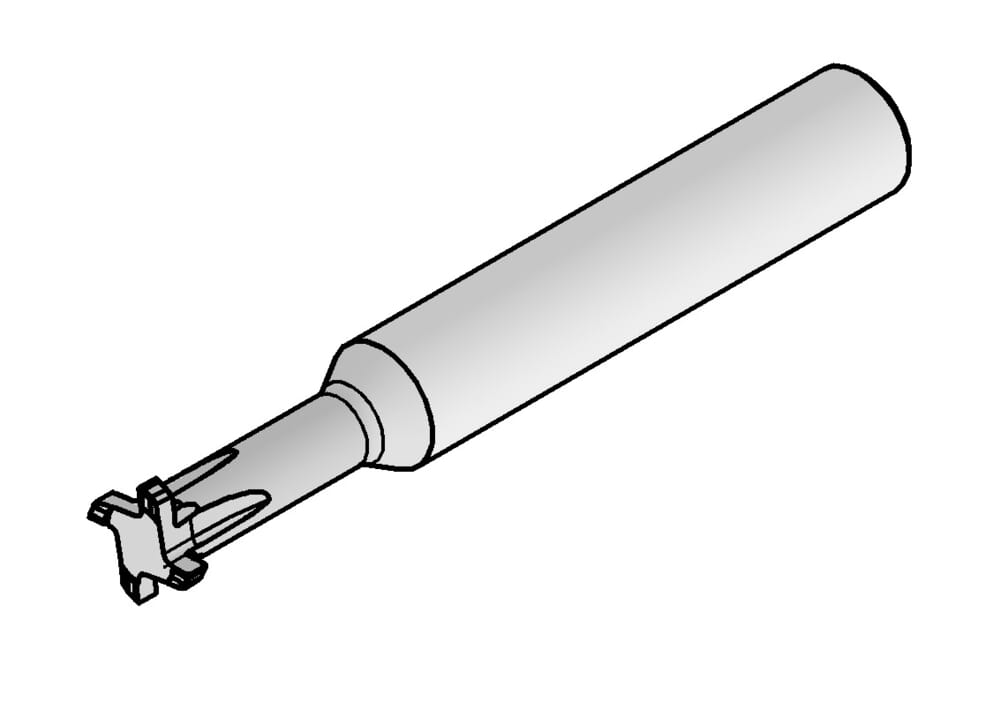

HORN DC Slot Cutter Toolholder DCN.4.120.05.00.6.12 RC45 for Milling

Shank, clamping length (l4)

1.772 ˝

45 mm

smallest-bore-diameter-imp

0.472 ˝

12 mm

Total length (l1)

3.031 ˝

77 mm

Maximum milling depth/ depth of groove (tmax)

0.118 ˝

3 mm

Neck diameter (d3)

0.224 ˝

5.7 mm

cutting-width-imp

0.02 ˝

0.5 mm

tool-application

rotating

Width of groove (inch) (w)

0.02 ˝

0.5 mm

Cutting diameter (d1)

0.472 ˝

12 mm

Neck length (l3)

0.984 ˝

25 mm

Shank diameter (d2)

0.472 ˝

12 mm
