DCN.3.50.05.00.1.06 RC45

Material number DCN3500500106RC45

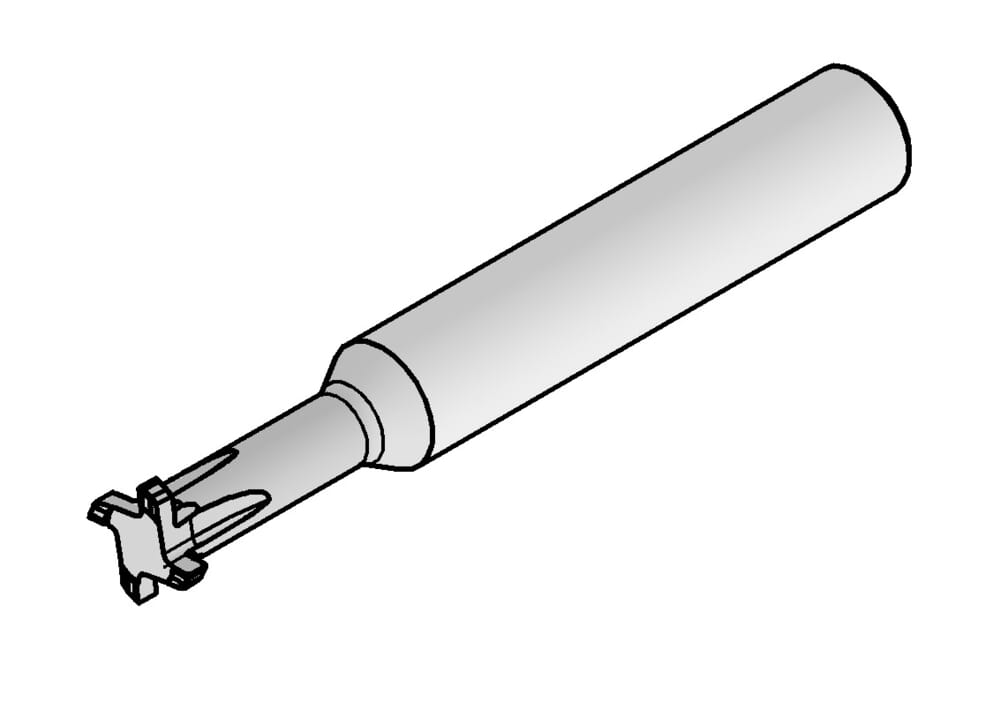

HORN DC Slot Cutter Toolholder DCN.3.50.05.00.1.06 RC45 for Milling

Shank, clamping length (l4)

1.417 ˝

36 mm

smallest-bore-diameter-imp

0.197 ˝

5 mm

Total length (l1)

1.969 ˝

50 mm

Maximum milling depth/ depth of groove (tmax)

0.039 ˝

1 mm

Neck diameter (d3)

0.11 ˝

2.8 mm

cutting-width-imp

0.02 ˝

0.5 mm

tool-application

rotating

Width of groove (inch) (w)

0.02 ˝

0.5 mm

Cutting diameter (d1)

0.197 ˝

5 mm

Neck length (l3)

0.197 ˝

5 mm

Shank diameter (d2)

0.236 ˝

6 mm
