DCGW11T308N.H0 PD70
Material number DCGW11T308NH0PD70

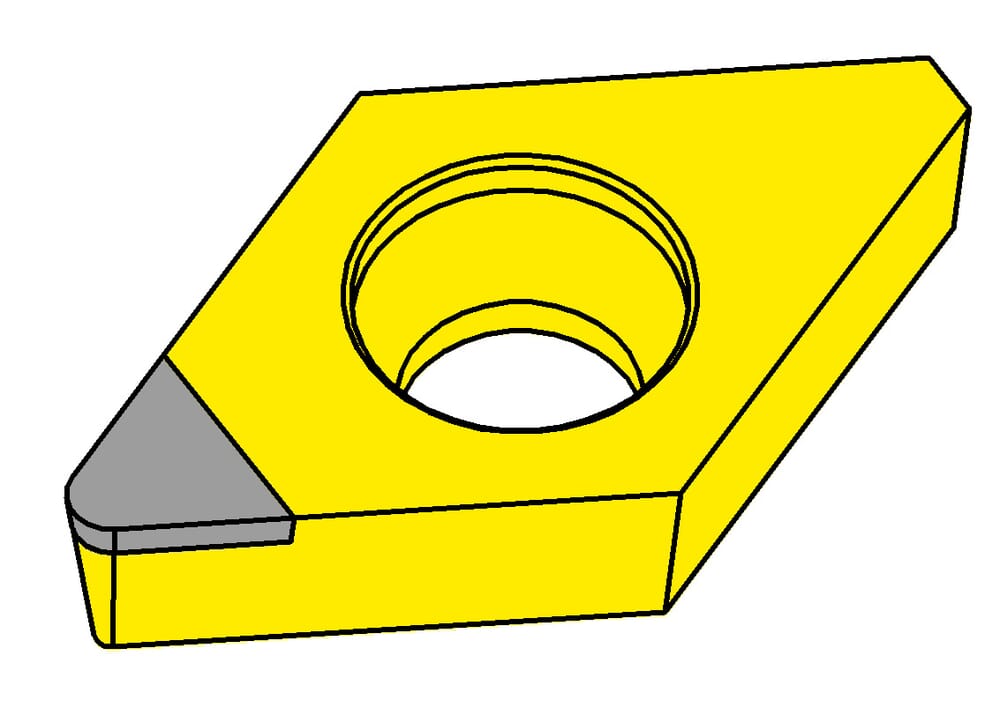

HORN Inserts DCGW11T308N.H0 PD70 for Turning
Inner circle diameter (d)
0.375 ˝
9.525 mm
Effective cutting length (l1)
0.157 ˝
4 mm
Cutting insert height, Cutting insert thickness (s)
0.156 ˝
3.97 mm
Corner radius (r)
0.031 ˝
0.8 mm
us-cutting
Yes
Bore diameter (d2)
0.173 ˝
4.4 mm
tool-application
static
| Downloads | |
|---|---|
| DCGW11T308N_H0_PD70-ISO.XML | Download |
| DCGW11T308N_H0_PD70-DIN.XML | Download |
| Download all files | |
