DCGW070204N.H0 HD08
Material number DCGW070204NH0HD08

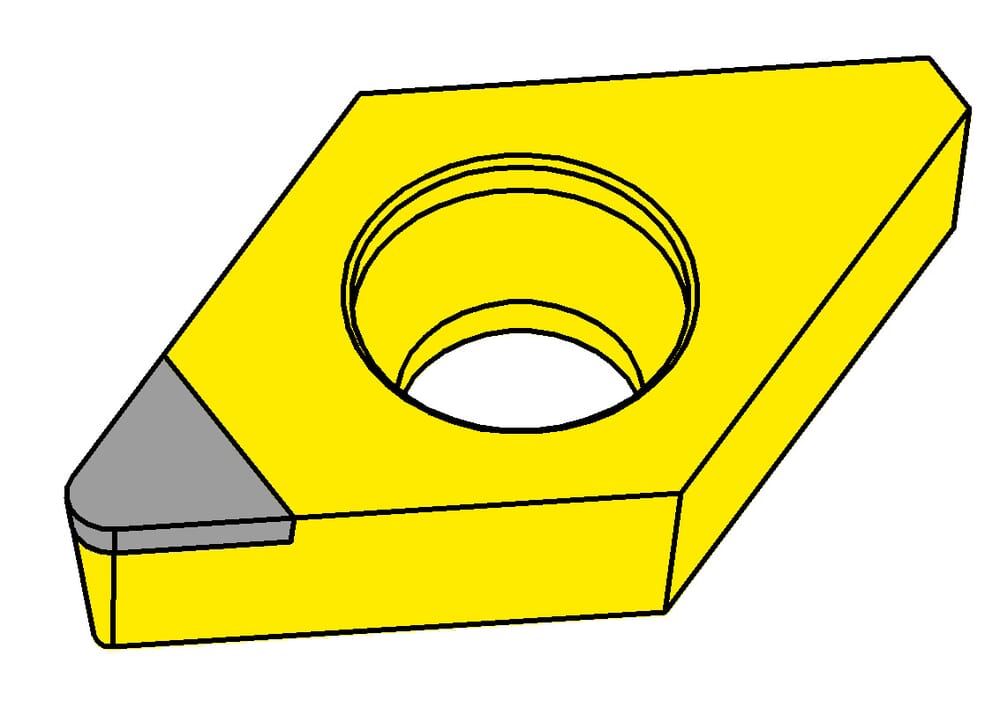

HORN Insert DCGW070204N.H0 HD08 for Turning
Inner circle diameter (d)
0.25 ˝
6.35 mm
Effective cutting length (l1)
0.118 ˝
3 mm
Cutting insert height, Cutting insert thickness (s)
0.094 ˝
2.38 mm
Corner radius (r)
0.016 ˝
0.4 mm
us-cutting
Yes
Bore diameter (d2)
0.11 ˝
2.8 mm
tool-application
static
| Downloads | |
|---|---|
| DCGW070204N_H0_HD08-ISO.XML | Download |
| DCGW070204N_H0_HD08-DIN.XML | Download |
| Download all files | |
