DCGT11T308N.HN PD70

Inserts

Material number DCGT11T308NHNPD70

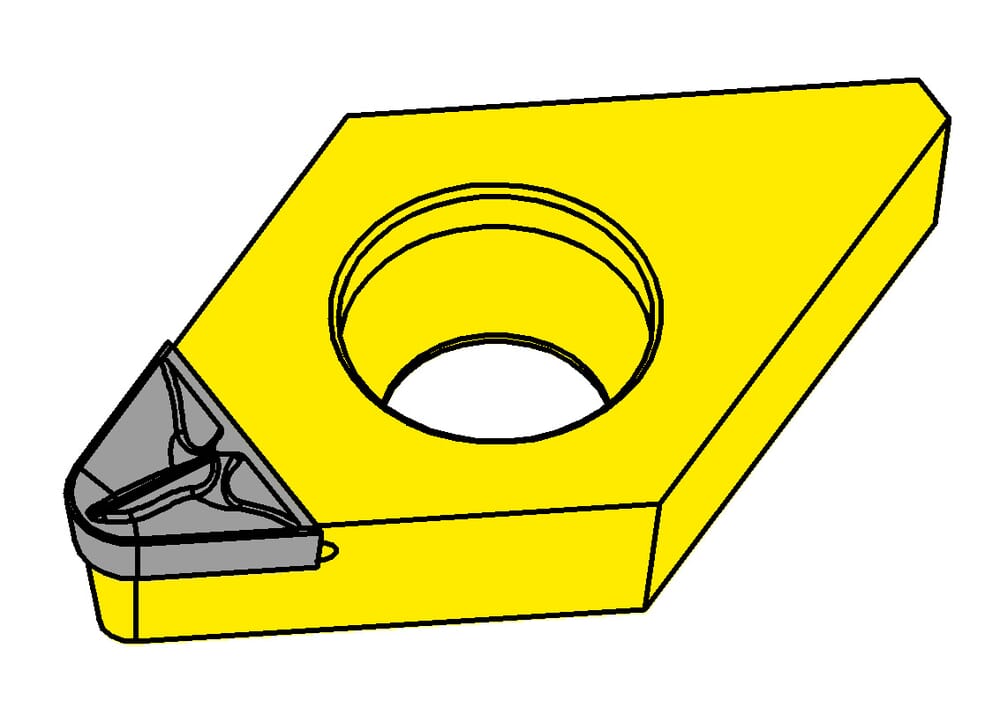

HORN Inserts DCGT11T308N.HN PD70 for Turning

Cutting insert height, Cutting insert thickness (s)

0.156 ˝

3.97 mm

tool-application

static

Inner circle diameter (d)

0.375 ˝

9.525 mm

Effective cutting length (l1)

0.138 ˝

3.5 mm

Bore diameter (d2)

0.173 ˝

4.4 mm

Corner radius (r)

0.031 ˝

0.8 mm
