DCGT11T304N.HS PD70
Inserts
Material number DCGT11T304NHSPD70

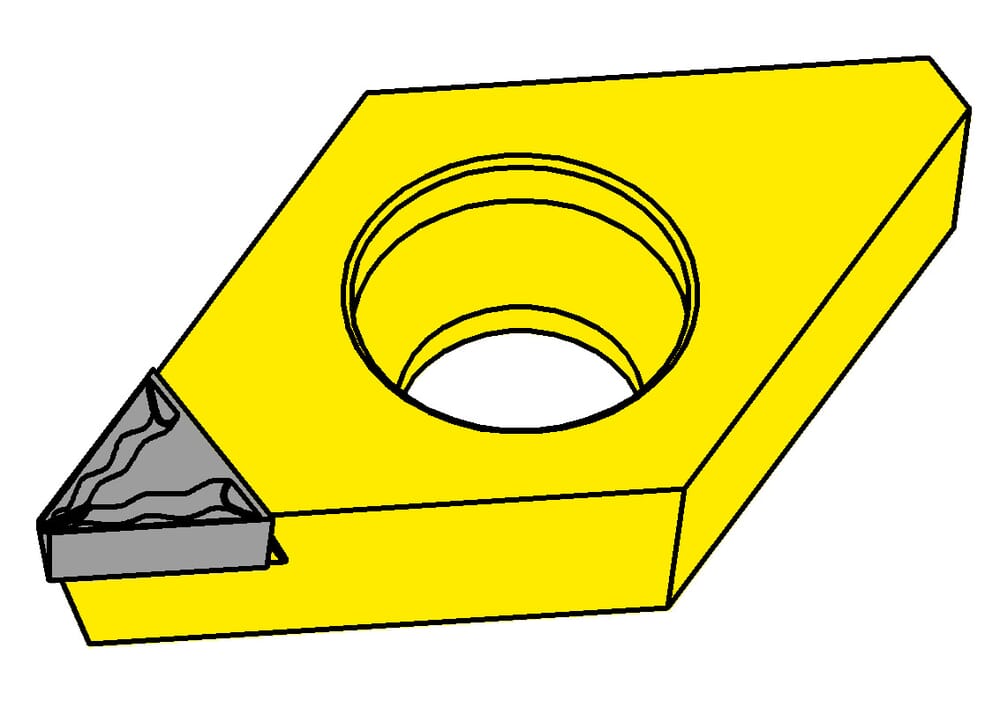

HORN Inserts DCGT11T304N.HS PD70 for Turning
Cutting insert height, Cutting insert thickness (s)
0.156 ˝
3.97 mm
tool-application
static
Inner circle diameter (d)
0.375 ˝
9.525 mm
Effective cutting length (l1)
0.138 ˝
3.5 mm
Bore diameter (d2)
0.173 ˝
4.4 mm
Corner radius (r)
0.016 ˝
0.4 mm
| Downloads | |
|---|---|
| DCGT11T304.STP | Download |
| Download all files | |
