DCGT11T302R.W.HN PD70
Material number DCGT11T302RWHNPD70

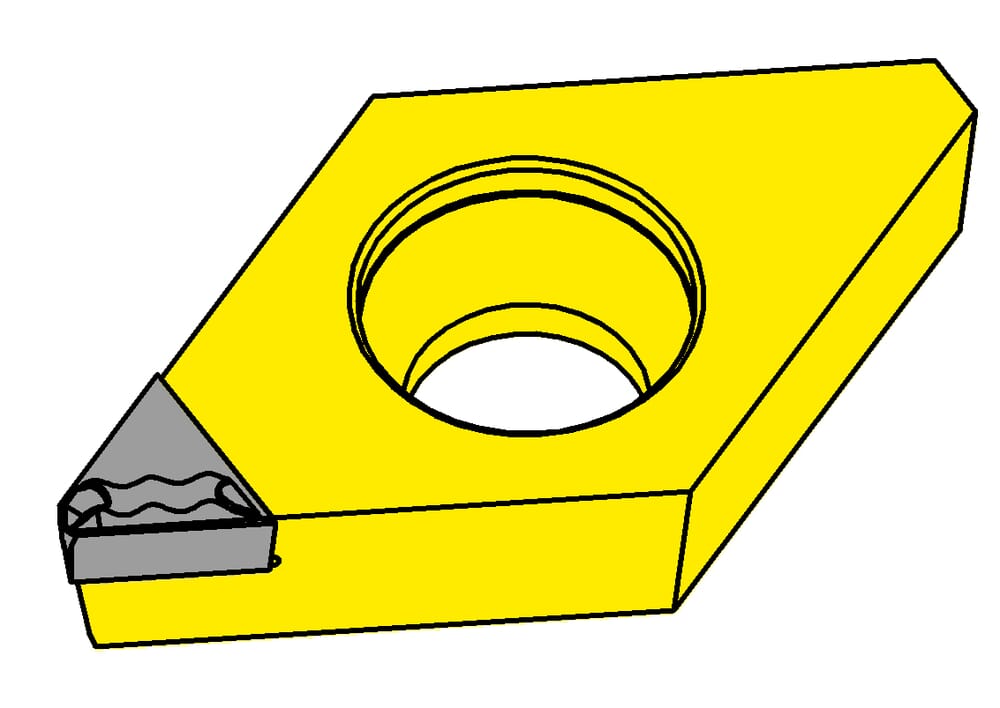

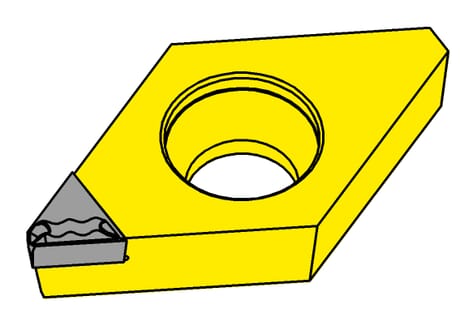

HORN Inserts DCGT11T302R.W.HN PD70 for Turning
Effective cutting length (l1)
0.138 ˝
3.5 mm
us-cutting
Yes
tool-application
static
Inner circle diameter (d)
0.375 ˝
9.525 mm
Bore diameter (d1)
0.173 ˝
4.4 mm
Cutting insert height, Cutting insert thickness (s)
0.156 ˝
3.97 mm
Corner radius (r)
0.008 ˝
0.2 mm
| Downloads | |
|---|---|
| DCGT11T302RWHNPD.STP | Download |
| DCGT11T302R_W_HN_PD70-ISO.XML | Download |
| DCGT11T302R_W_HN_PD70-DIN.XML | Download |
| DCGT11T302RWHNPD_20240205_193626580.DXF | Download |
| Download all files | |
