DCGT11T302N.HN PD70
Inserts
Material number DCGT11T302NHNPD70

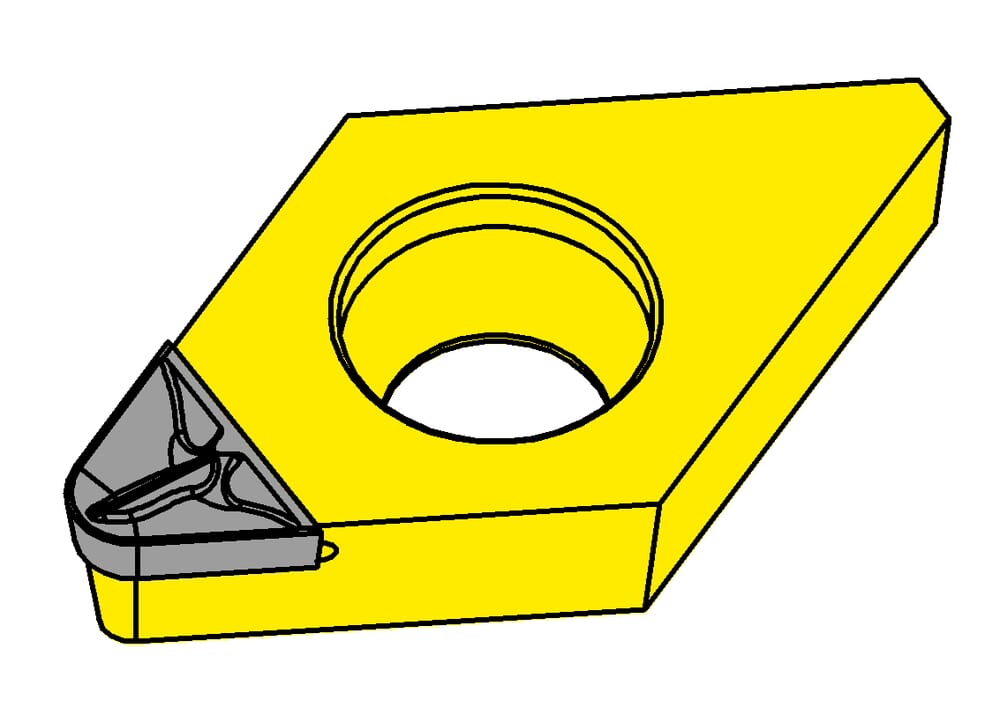

HORN Inserts DCGT11T302N.HN PD70 for Turning
Cutting insert height, Cutting insert thickness (s)
0.156
˝
3.97
mm
tool-application
static
Inner circle diameter (d)
0.375
˝
9.525
mm
Effective cutting length (l1)
0.138
˝
3.5
mm
Bore diameter (d2)
0.173
˝
4.4
mm
Corner radius (r)
0.008
˝
0.2
mm
| Downloads | |
|---|---|
| DCGT11T302NHNPD.STP | Download |
| Download all files | |
