DCGT11T301N.HS PD70
Inserts
Material number DCGT11T301NHSPD70

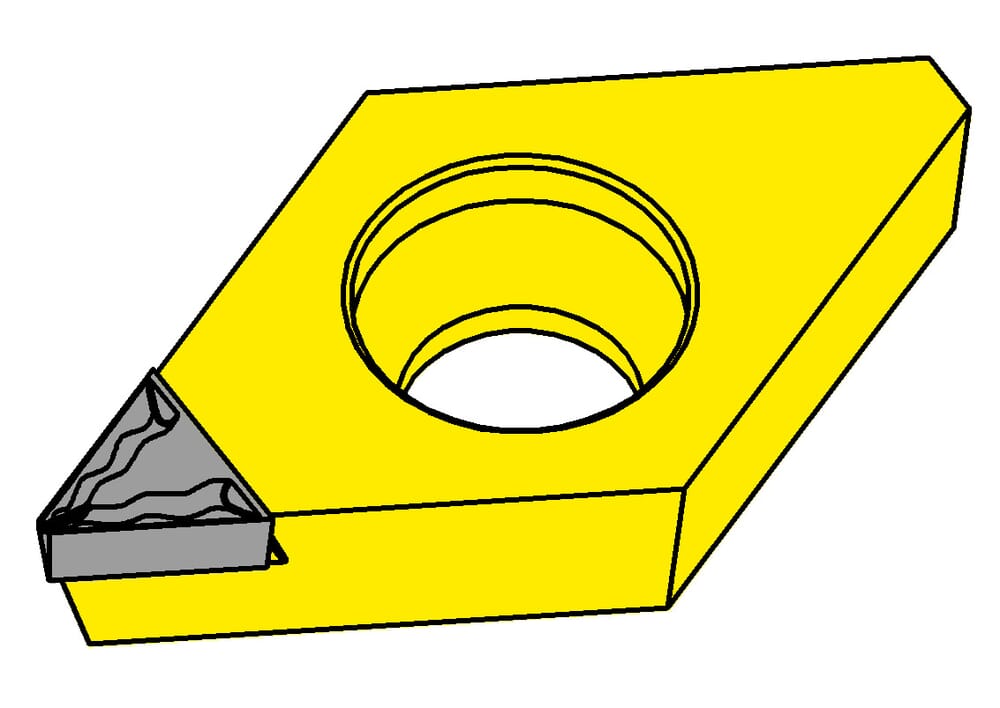

HORN Inserts DCGT11T301N.HS PD70 for Turning
Cutting insert height, Cutting insert thickness (s)
0.156
˝
3.97
mm
tool-application
static
Inner circle diameter (d)
0.375
˝
9.525
mm
Effective cutting length (l1)
0.138
˝
3.5
mm
Bore diameter (d2)
0.173
˝
4.4
mm
Corner radius (r)
0.004
˝
0.1
mm
