DCGT070208N.HN PD70
Inserts
Material number DCGT070208NHNPD70

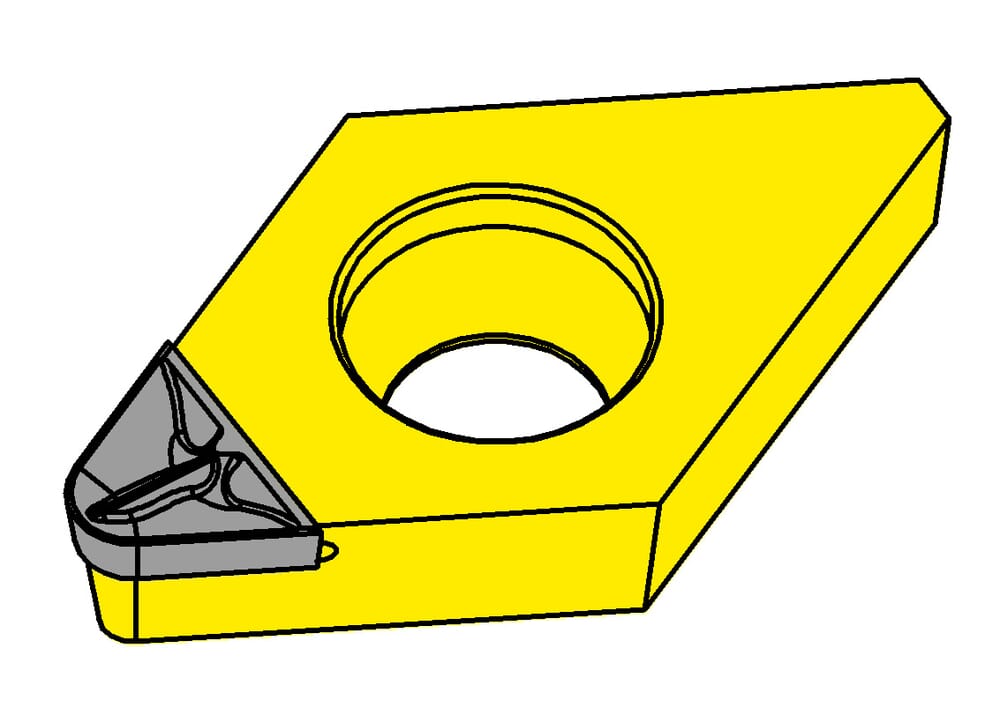

HORN Inserts DCGT070208N.HN PD70 for Turning
Cutting insert height, Cutting insert thickness (s)
0.094
˝
2.38
mm
tool-application
static
Inner circle diameter (d)
0.25
˝
6.35
mm
Effective cutting length (l1)
0.118
˝
3
mm
Bore diameter (d2)
0.11
˝
2.8
mm
Corner radius (r)
0.031
˝
0.8
mm
| Downloads | |
|---|---|
| DCGT070208NHN_20240118_045740921.STP | Download |
| DCGT070208NHN.DXF | Download |
| Download all files | |
