DCGT070204N.H6 PD70
Inserts
Material number DCGT070204NH6PD70

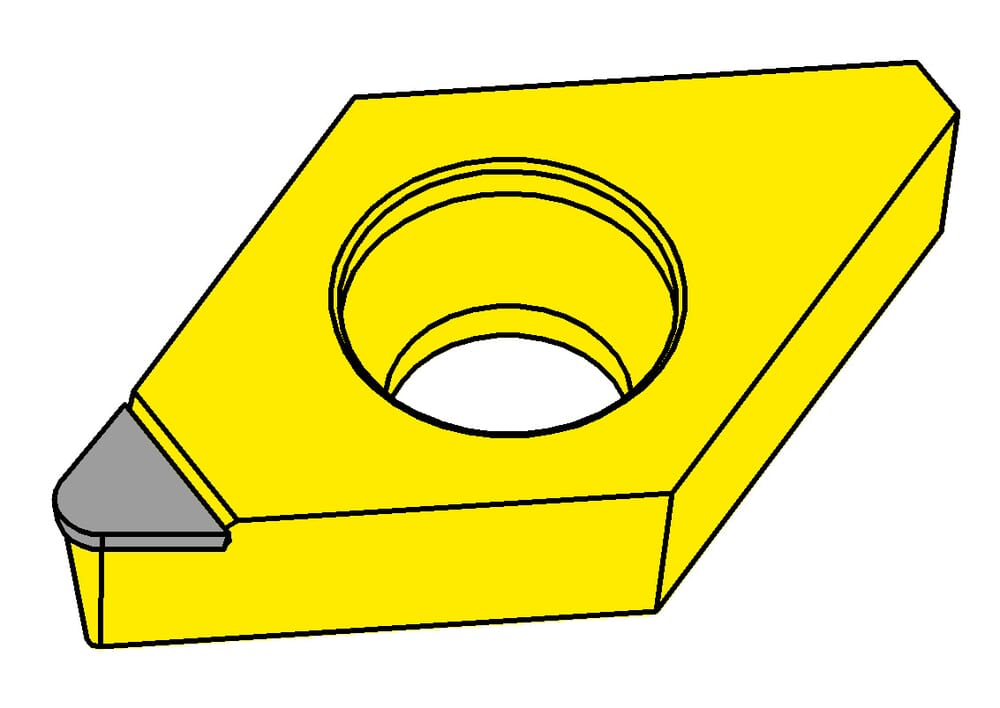

HORN Inserts DCGT070204N.H6 PD70 for Turning
Cutting insert height, Cutting insert thickness (s)
0.094
˝
2.38
mm
tool-application
static
Inner circle diameter (d)
0.25
˝
6.35
mm
Effective cutting length (l1)
0.138
˝
3.5
mm
Bore diameter (d2)
0.11
˝
2.8
mm
Corner radius (r)
0.016
˝
0.4
mm
