DCGT070204L.W.HS PD70
Inserts
Material number DCGT070204LWHSPD70

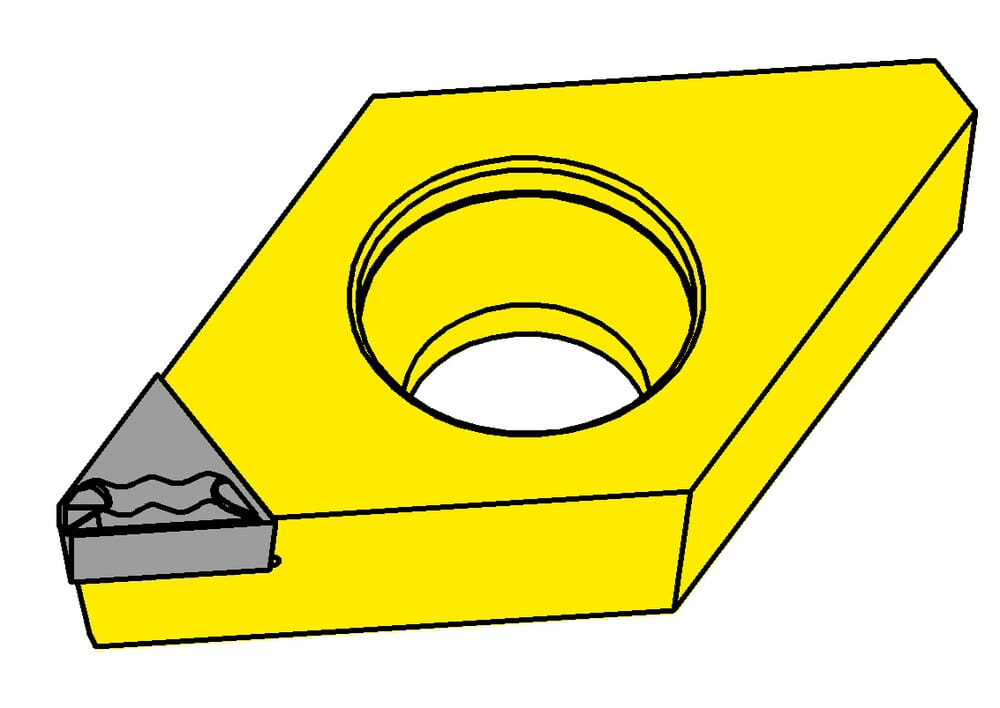

HORN Inserts DCGT070204L.W.HS PD70 for Turning
Cutting insert height, Cutting insert thickness (s)
0.094 ˝
2.38 mm
tool-application
static
Inner circle diameter (d)
0.25 ˝
6.35 mm
Effective cutting length (l1)
0.118 ˝
3 mm
Bore diameter (d1)
0.11 ˝
2.8 mm
Corner radius (r)
0.016 ˝
0.4 mm
