DCGT070202N.HN HD08
Insert
Material number DCGT070202NHNHD08

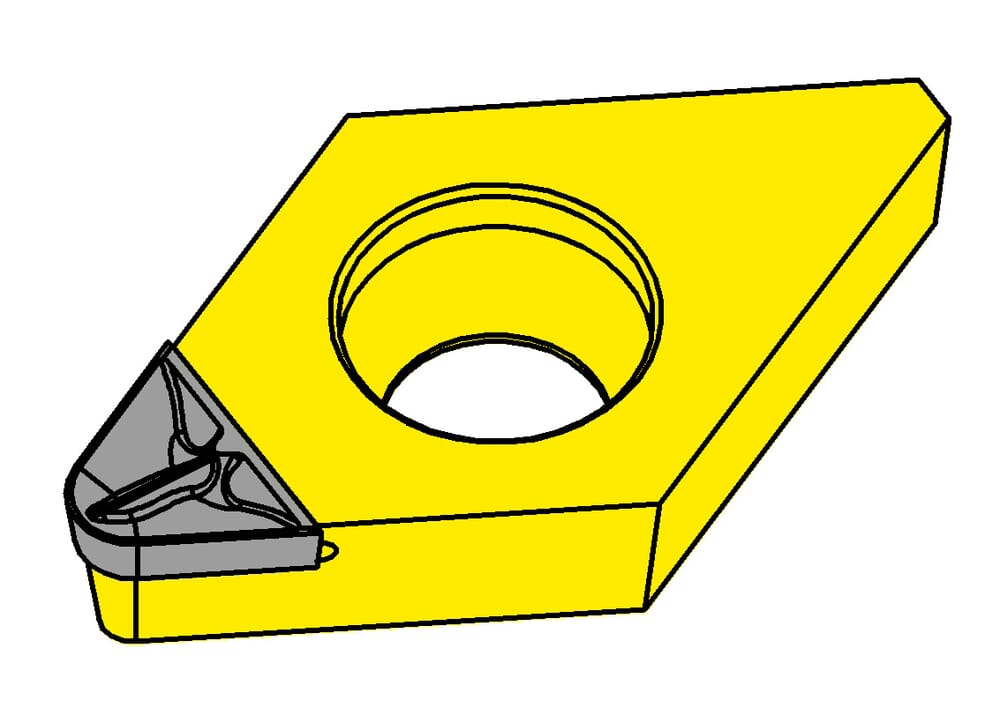

HORN Insert DCGT070202N.HN HD08 for Turning
Cutting insert height, Cutting insert thickness (s)
0.094
˝
2.38
mm
tool-application
static
Inner circle diameter (d)
0.25
˝
6.35
mm
Effective cutting length (l1)
0.098
˝
2.5
mm
Bore diameter (d2)
0.11
˝
2.8
mm
Corner radius (r)
0.008
˝
0.2
mm
