DCGT070201N.H6 HD08
Material number DCGT070201NH6HD08

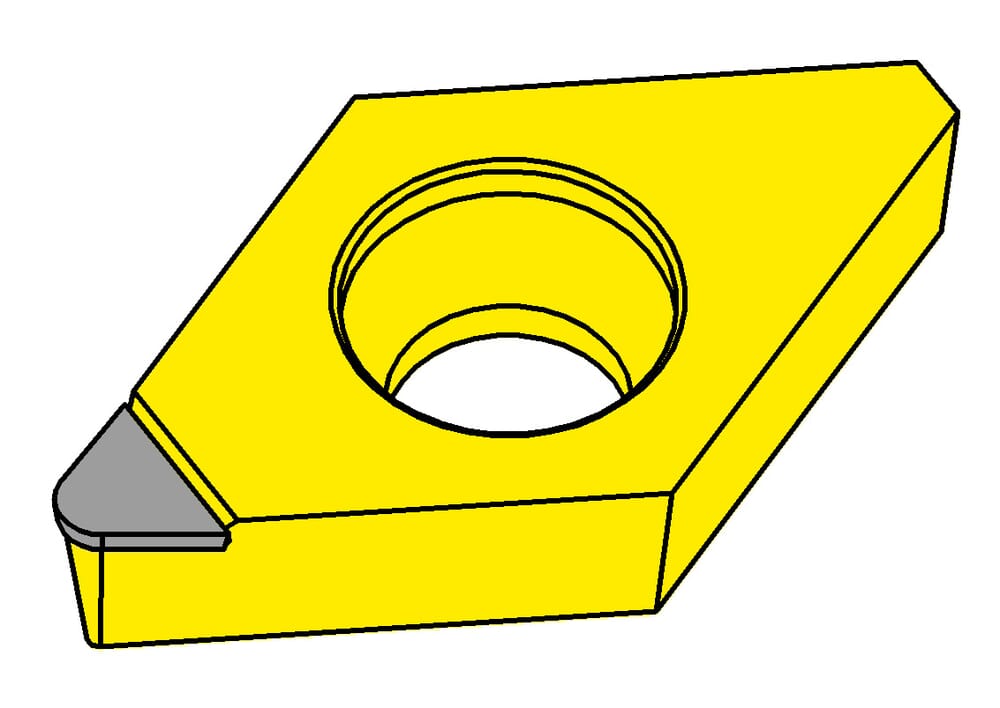

HORN Insert DCGT070201N.H6 HD08 for Turning
Effective cutting length (l1)
0.118 ˝
3 mm
us-cutting
Yes
tool-application
static
Inner circle diameter (d)
0.25 ˝
6.35 mm
Bore diameter (d2)
0.11 ˝
2.8 mm
Cutting insert height, Cutting insert thickness (s)
0.094 ˝
2.38 mm
Corner radius (r)
0.004 ˝
0.1 mm
| Downloads | |
|---|---|
| DCGT070201N_H6_HD08-ISO.XML | Download |
| DCGT070201N_H6_HD08-DIN.XML | Download |
| Download all files | |
