DCG.4.55.1212.8.10 AN25

Also suitable for:

Material number DCG4551212810AN25

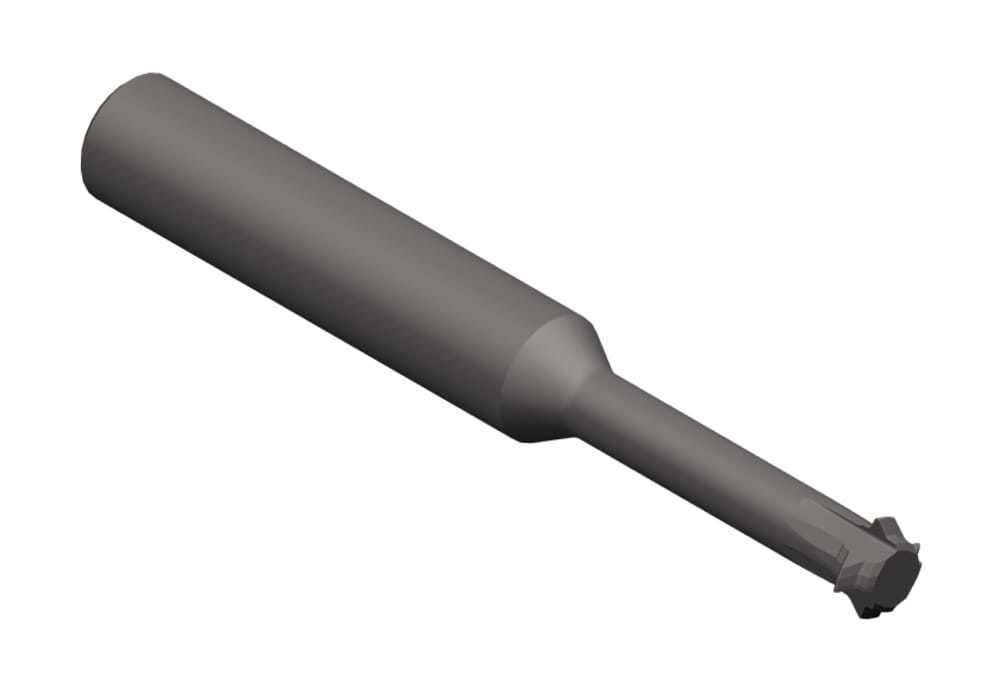

HORN DC threadmill - Whitworth - 1/2"-12 BSW DCG.4.55.1212.8.10 AN25 for Milling

Pitch (P)

0.083 ˝

2.117 mm

us-cutting

Yes

cutting

tool-application

rotating

Smallest bore diameter (Dmin)

0.39 ˝

9.9 mm

Total length (l1)

3.031 ˝

77 mm

Neck diameter (d3)

0.207 ˝

5.25 mm

Shank diameter (d2)

0.394 ˝

10 mm

Shank, clamping length (l4)

1.575 ˝

40 mm

Cutting diameter (d1)

0.335 ˝

8.5 mm

Neck length (l3)

1.181 ˝

30 mm
