DCG.3.55.73228.3.06 AN25
DC threadmill - Whitworth - 7/32"-28 BSF
Material number DCG35573228306AN25

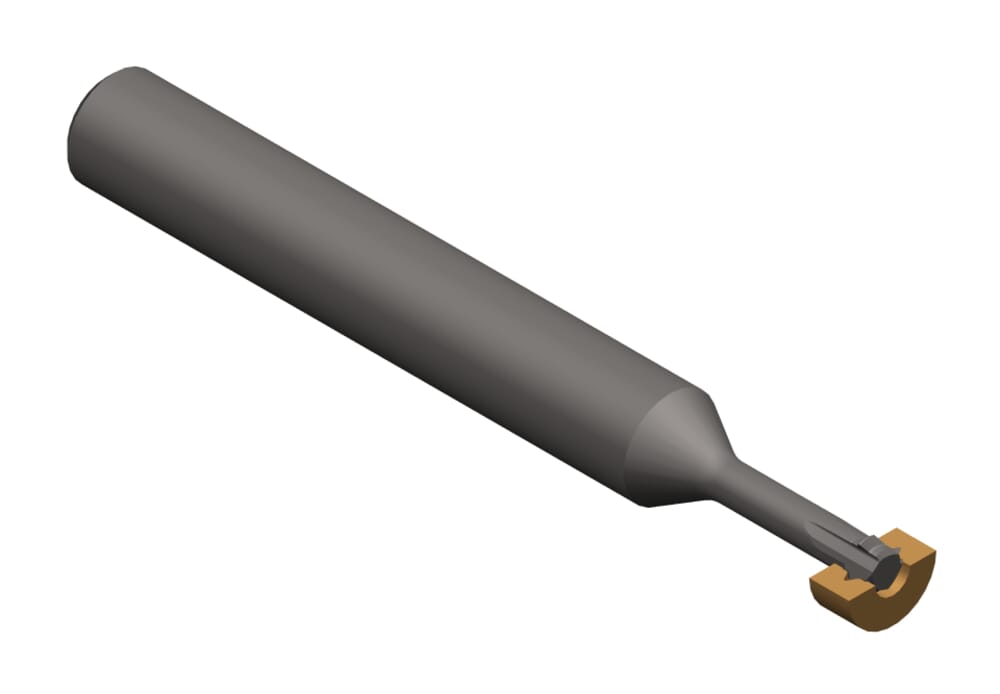

HORN DC threadmill - Whitworth - 7/32"-28 BSF DCG.3.55.73228.3.06 AN25 for Milling
Total length (l1)
1.969
˝
50
mm
tool-application
rotating
Pitch (P)
0.036
˝
0.907
mm
Smallest bore diameter (Dmin)
0.169
˝
4.3
mm
Shank diameter (d2)
0.236
˝
6
mm
Shank, clamping length (l4)
1.417
˝
36
mm
Cutting diameter (d1)
0.142
˝
3.6
mm
Neck length (l3)
0.394
˝
10
mm
| Downloads | |
|---|---|
| DCG35573228306_20230113_002225695.STP | Download |
| DCG35573228306_20210625_155534468.DXF | Download |
| Download all files | |
