CCGW09T302N.H0 HD08
Material number CCGW09T302NH0HD08

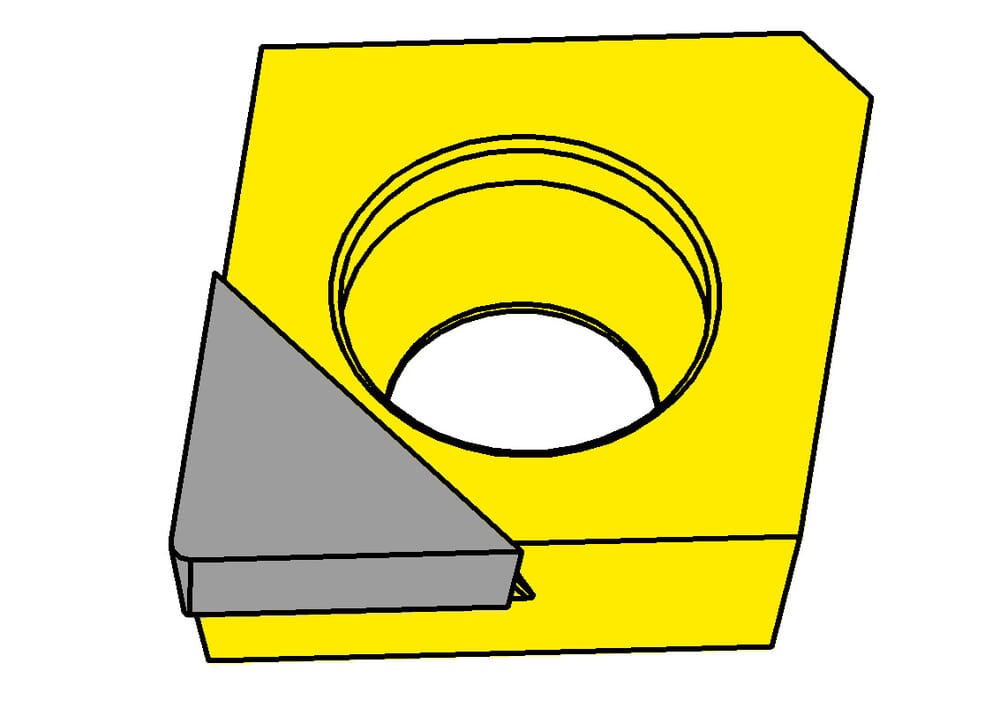

HORN Insert CCGW09T302N.H0 HD08 for Turning
Effective cutting length (l1)
0.177 ˝
4.5 mm
us-cutting
Yes
cutting
1
tool-application
static
Inner circle diameter (d)
0.375 ˝
9.525 mm
Bore diameter (d2)
0.173 ˝
4.4 mm
Cutting insert height, Cutting insert thickness (s)
0.156 ˝
3.97 mm
Corner radius (r)
0.008 ˝
0.2 mm
