CCGT09T304N.HS PD70
Material number CCGT09T304NHSPD70

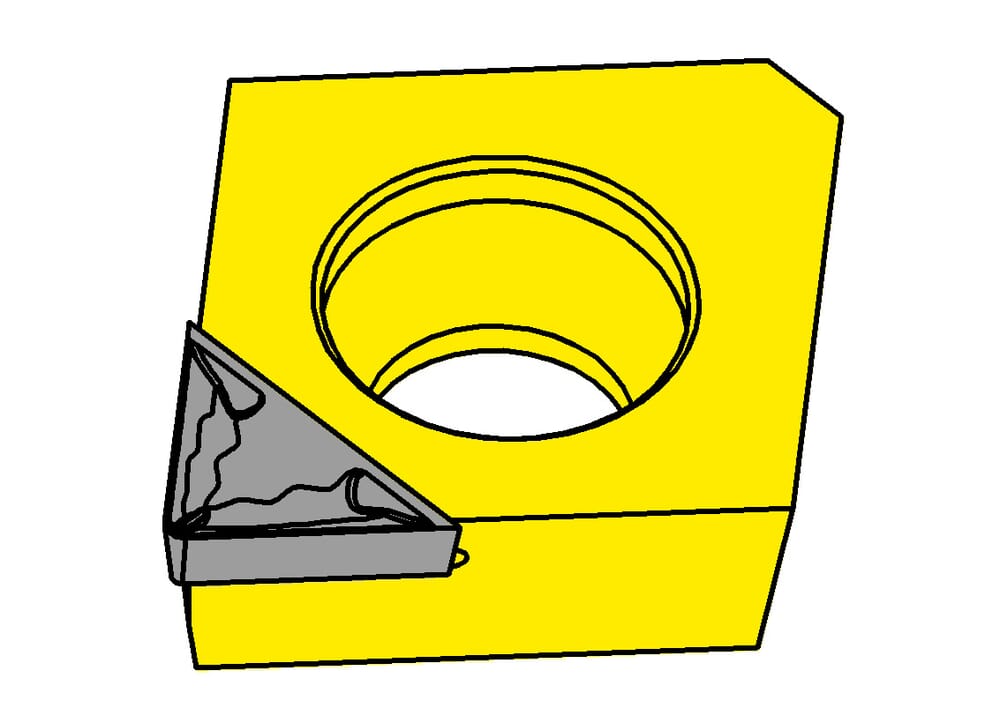

HORN Inserts CCGT09T304N.HS PD70 for Turning
Effective cutting length (l1)
0.138 ˝
3.5 mm
us-cutting
Yes
cutting
1
tool-application
static
Inner circle diameter (d)
0.375 ˝
9.525 mm
Bore diameter (d2)
0.173 ˝
4.4 mm
Cutting insert height, Cutting insert thickness (s)
0.156 ˝
3.97 mm
Corner radius (r)
0.016 ˝
0.4 mm
| Downloads | |
|---|---|
| CCGT09T304NHSPD_20240118_135525528.STP | Download |
| CCGT09T304N_HS_PD70-ISO.XML | Download |
| CCGT09T304N_HS_PD70-DIN.XML | Download |
| CCGT09T304NHSPD.DXF | Download |
| Download all files | |
