CCGT09T304N.HN HD08
Material number CCGT09T304NHNHD08

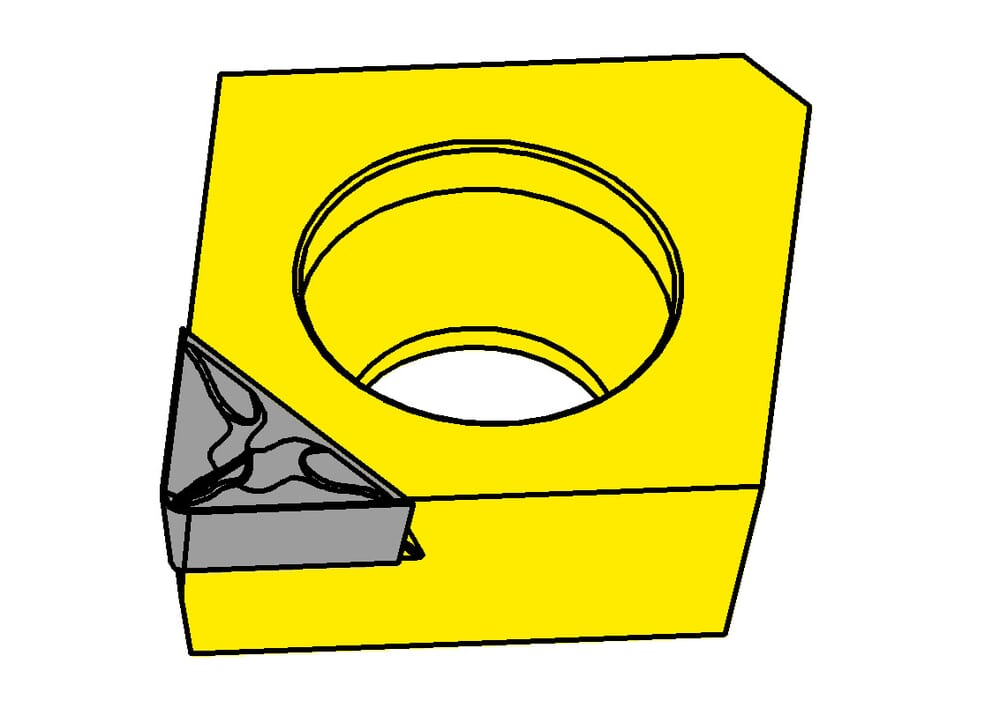

HORN Insert CCGT09T304N.HN HD08 for Turning
Effective cutting length (l1)
0.157 ˝
4 mm
us-cutting
Yes
cutting
1
tool-application
static
Inner circle diameter (d)
0.375 ˝
9.525 mm
Bore diameter (d2)
0.173 ˝
4.4 mm
Cutting insert height, Cutting insert thickness (s)
0.156 ˝
3.97 mm
Corner radius (r)
0.016 ˝
0.4 mm
