CCGT09T301N.H6 HD08
Material number CCGT09T301NH6HD08

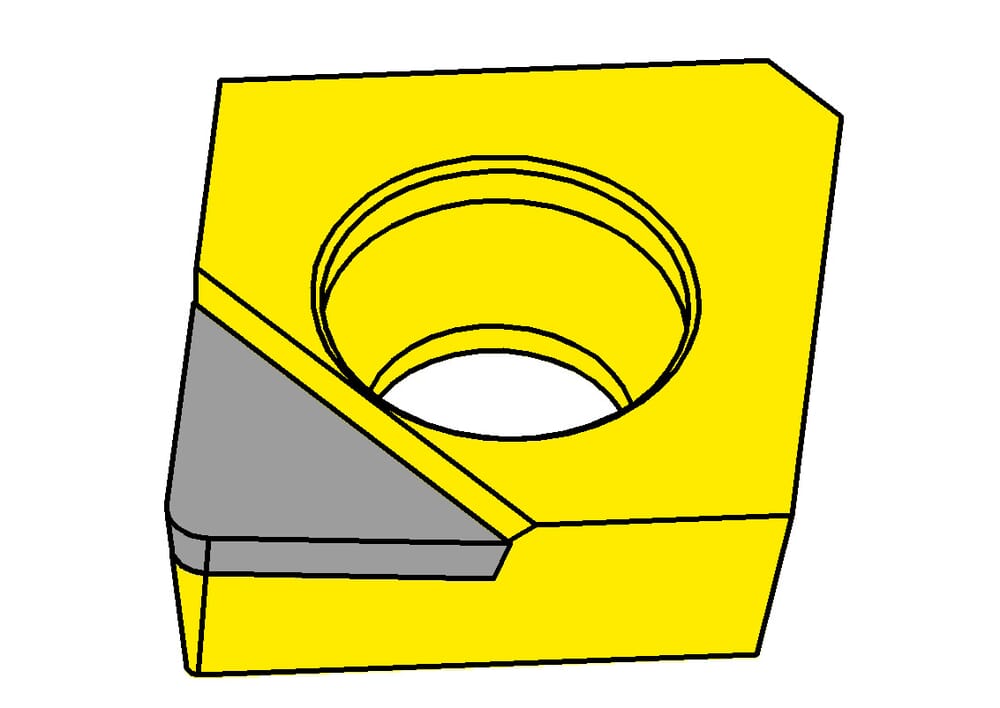

HORN Insert CCGT09T301N.H6 HD08 for Turning
Cutting insert height, Cutting insert thickness (s)
0.156 ˝
3.97 mm
tool-application
static
Inner circle diameter (d)
0.375 ˝
9.525 mm
Effective cutting length (l1)
0.177 ˝
4.5 mm
Bore diameter (d2)
0.173 ˝
4.4 mm
Corner radius (r)
0.004 ˝
0.1 mm
