C6.L220.150.K1.IK
Material number C6L220150K1IK

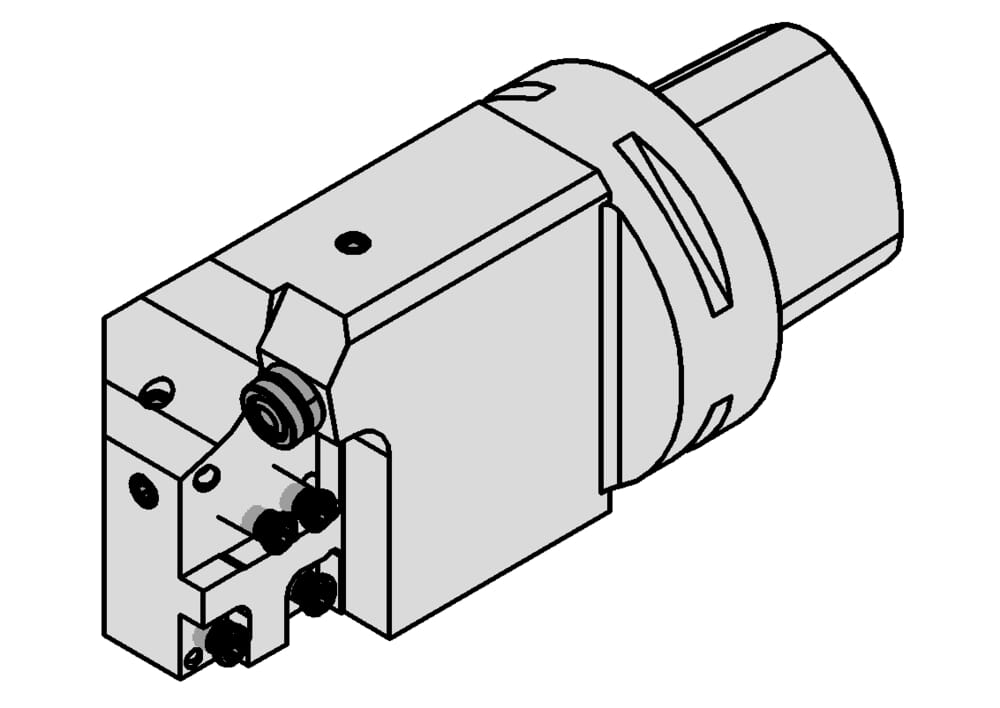

HORN cutting body typ 220 C6.L220.150.K1.IK for Turning
cutting
0
tool-application
static
Adjustment dimension (formula) (f)
f1+f3
Katalog_CCTWS
220002
Distance from center (h1)
0.492 ˝
12.5 mm
Length from bore (l2)
5.157 ˝
131 mm
Adjustment dimension (f1)
0.024 ˝
0.6 mm
Bore diameter rotate (d1)
2.48 ˝
63 mm
System cassette from the collar (l1)
4.764 ˝
121 mm
